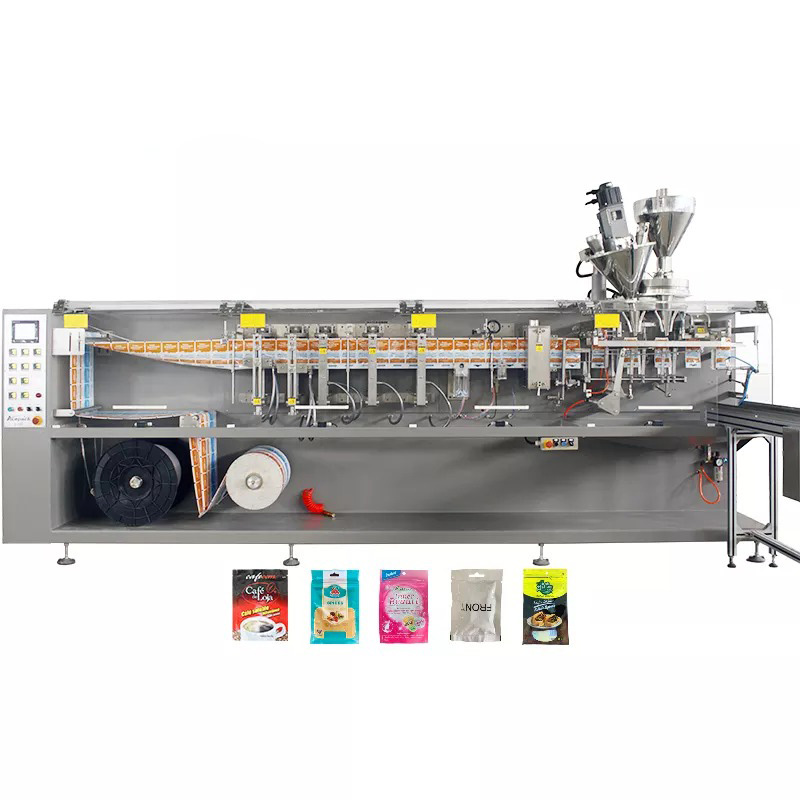

Zipper Flat Bag Form Fill And Seal Packaging Machine

Zipper Flat Bag Form Fill And Seal Packaging MachineZipper Flat Bag Form Fill And Seal Packaging Machine
Zipper Flat Bag Form Fill And Seal Packaging MachineZipper Flat Bag Form Fill And Seal Packaging Machine

The zipper flat Sachet packaging machine series is specially designed for small bag and middle bag packaging. It has double-station blanking, and can be customized with functions such as hanging holes and zippers. It is suitable for a large number of canned packaging types such as granules and powders.

DetailsParameterVideoApplication
Zipper-Flat-Bag-Form-Fill-And-Seal-Packaging-Machine-Process

（1） Film Unwind（5） Film Guide（9）Tear Notch（13）Pouch Catching（17）Heat Sealing
（2） Zipper Mechannism（6）Bottom Seal（10）Photocell（14）Pouch Opening（18）Finished Product
（3） Pouch Forming（7）Vertical Seal I（11）Servo Advance（15）Filling I（19）Output
（4） Zipper Seal（8）Vertical Seal II（12）Cutting（16）Filling II

Zipper-Flat-Bag-Form-Fill-And-Seal-Packaging-Machine-Application

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

Zipper Flat Bag Form Fill And Seal Packaging Machine Bag Type

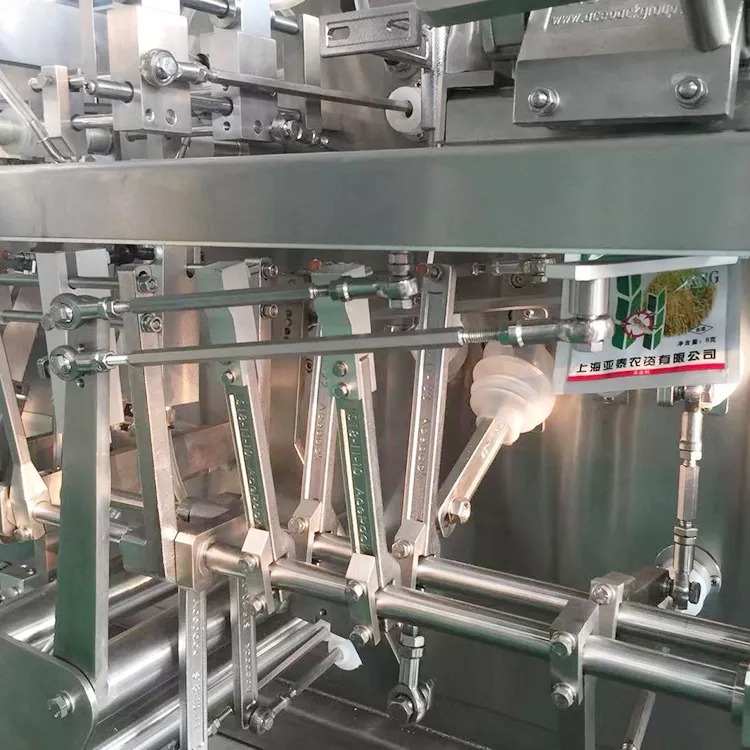

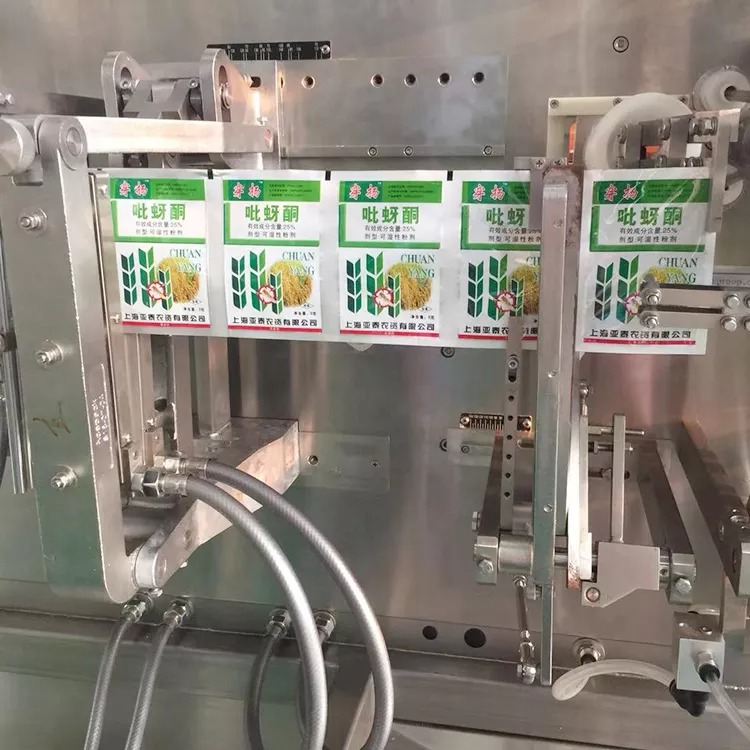

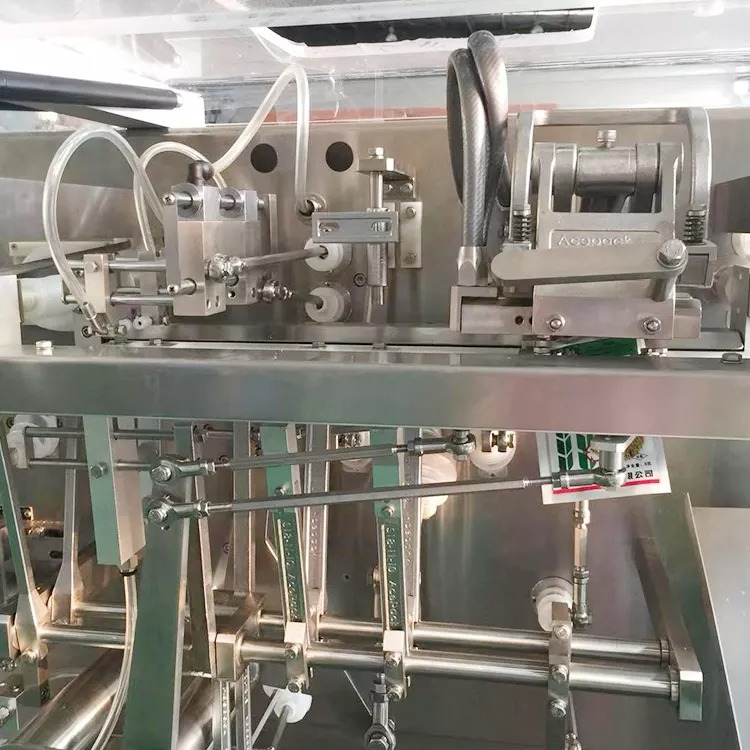

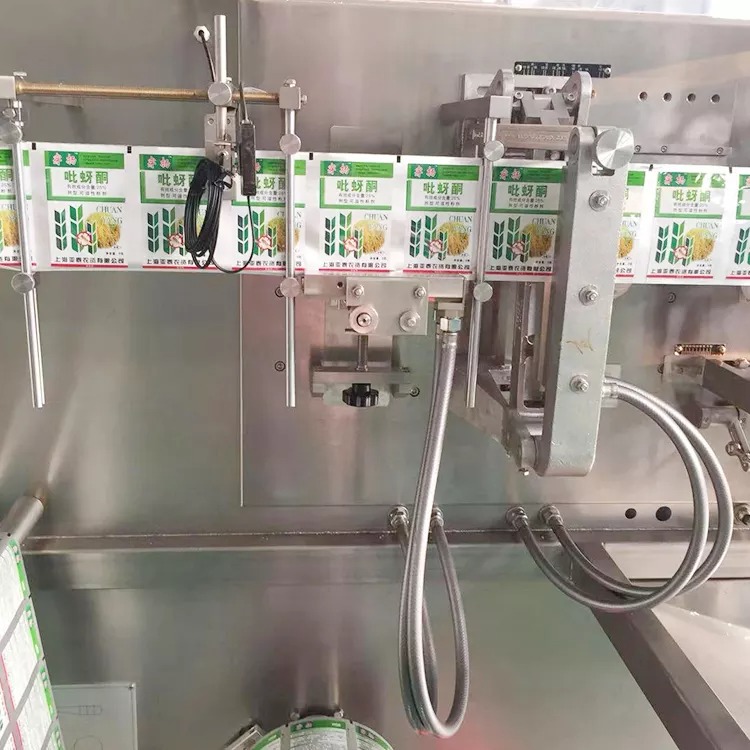

Horizontal Flat Pouch Roll Film Sachet Packing MachineHorizontal Flat Pouch Roll Film Sachet Packing Machine
Horizontal Flat Pouch Roll Film Sachet Packing MachineHorizontal Flat Pouch Roll Film Sachet Packing Machine
Horizontal Flat Pouch Roll Film Sachet Packing MachineHorizontal Flat Pouch Roll Film Sachet Packing Machine
Horizontal Flat Pouch Roll Film Sachet Packing MachineHorizontal Flat Pouch Roll Film Sachet Packing Machine
ModelS-180ZS-240ZS-240DZ
Maximum Packing Volume400ml1000ml180ml
Max Pouch Size180mm*225mm240mm*310mm120mm*225mm
Min Pouch Size50mm*80mm100mm*120mm65mm*80mm
Packing Speed40-80ppm30-60ppm100-160ppm
Air Consumption200NL/min300NL/min200NL/min
Input Power5.5kw7.5kw6.5Kw
Working Power SupplyAC 380V 50HzAC 380V 50HzAC 380V 50Hz
Equipment Weight1600kg2300kg2000kg
L*W*H4660*970*1500mm5400*970*1500mm4590*970*1500mm
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application

Zipper-Flat-Bag-Form-Fill-And-Seal-Packaging-Machine-Application
