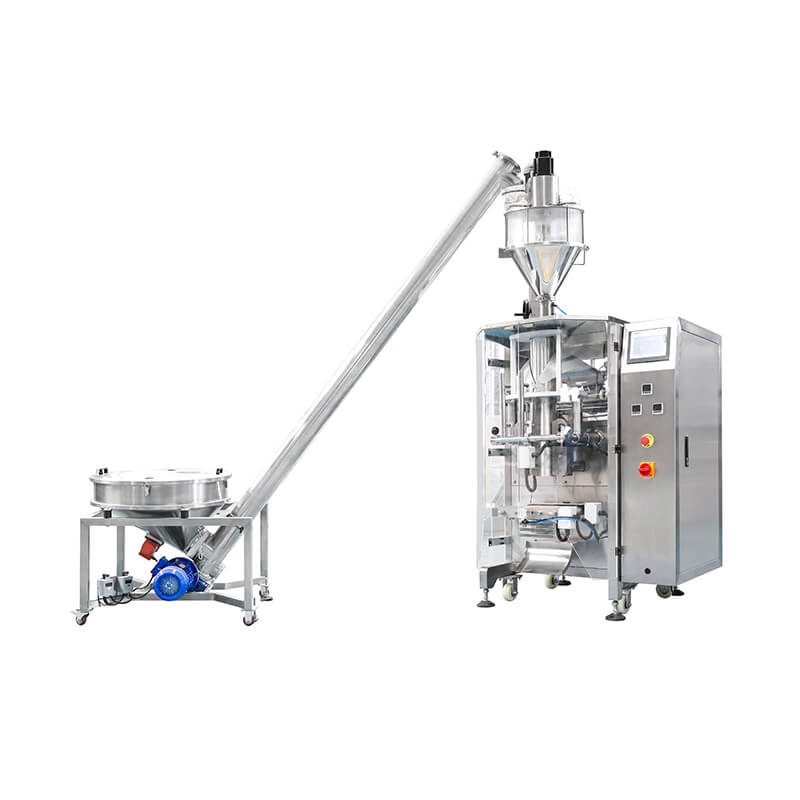

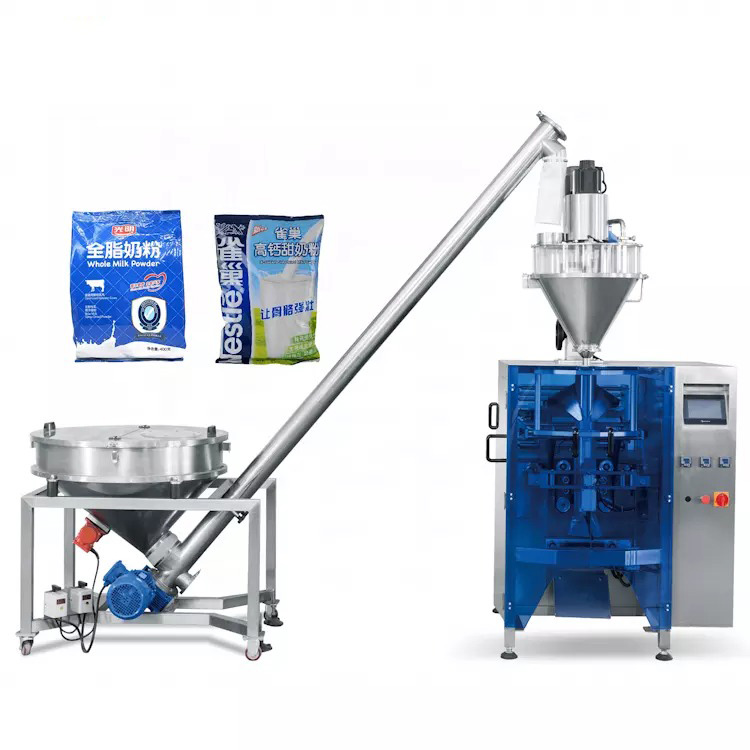

Suitable for milk powder, flour, milk tea powder, starch, flavoring powder, protein powder, building powder, chemical powder, etc.
- The whole set of equipment is linked and controlled to automatically control the material supply, no material, no packaging, no waste.
- Imported computer control PLC system, Siemens Chinese and English touch screen, easy to operate.
- Imported film conveying system and color mark sensor ensure accurate positioning.
- Excellent performance, low noise, and tight sealing.
- The PLC Siemens controller realizes all processes including conveying materials, measuring, filling, bagging, date printing and good delivery of finished products.
- Packing speed and bag length can be set according to adjusting parts.
- Automatic error correction function, saving time and packaging materials.
- The measurement is accurate, the packaging efficiency is high, and the system is stable and reliable.

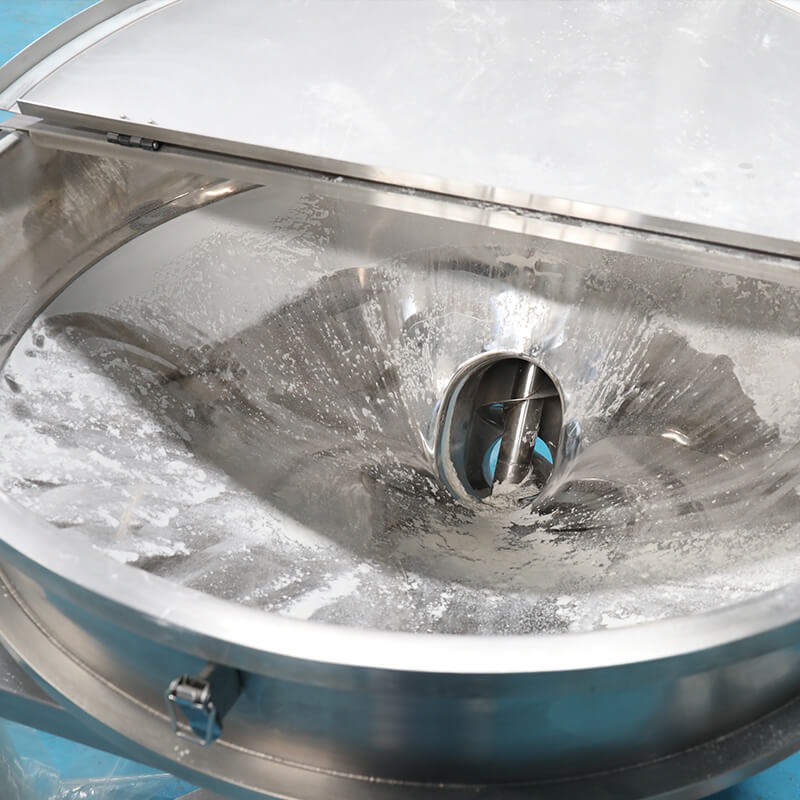

- Spiral screw feeder, independent mixing system
Siemens Dual-frequency Controller
Siemens dual-frequency controller, mature and stable system, less wear, low failure rate, stable operation, low noise, easy maintenance, long life

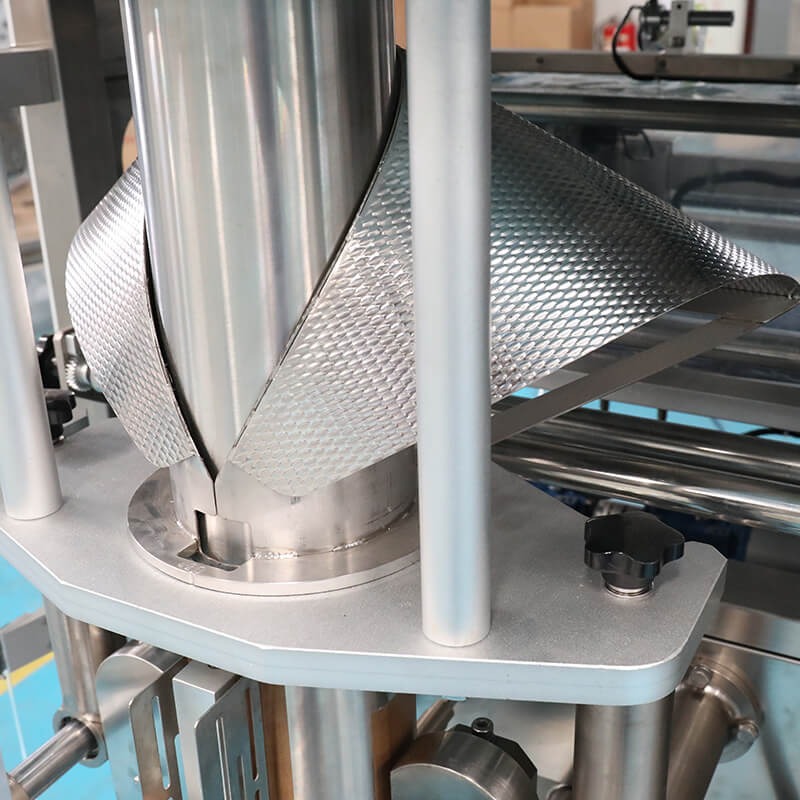

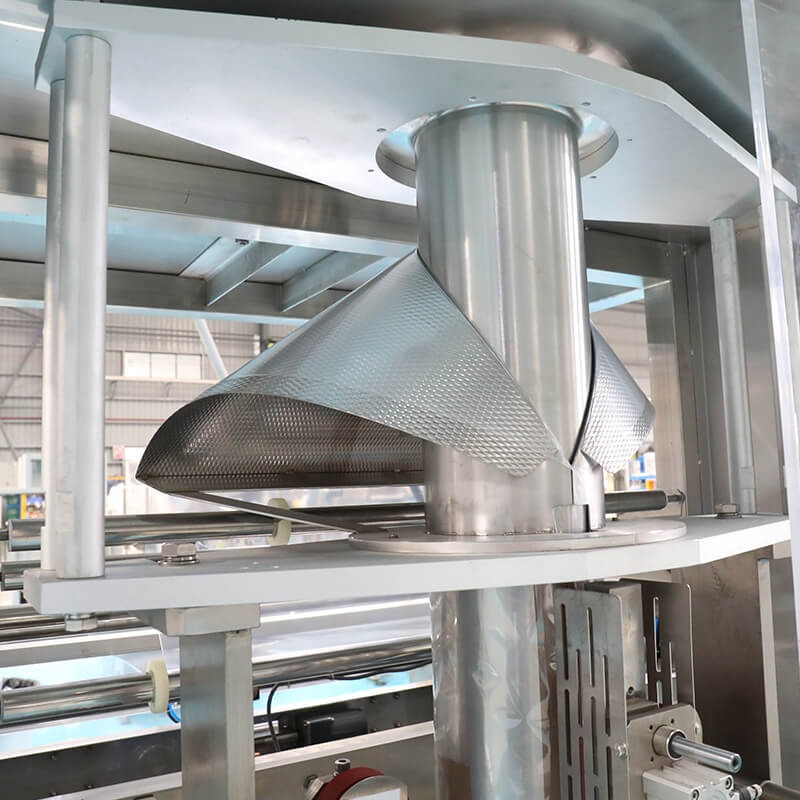

Film installation device
With the external packaging of film rolling device,the film is more smooth

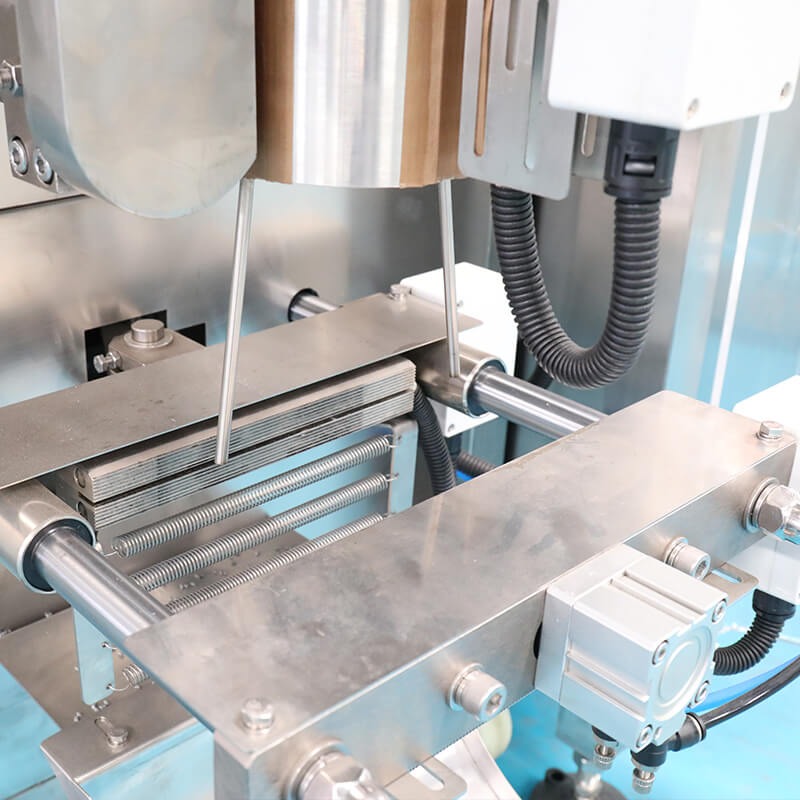

Sealing and cutting device
Independent PID temperature control, thermal heating bilateral middle strip, the product back seal sealing,to ensure tightness

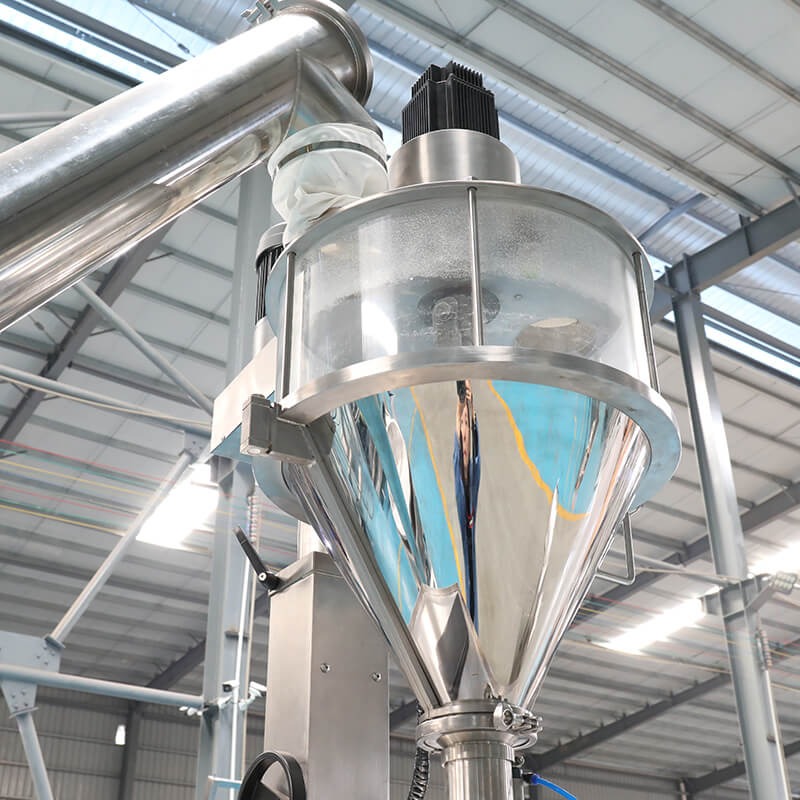

304 SS Screw conveyor & measure
Automatic screw conveyor and measuring system with high precision weighing
Easy Control Touch Screen
The Siemens PLC control system imported from Germany, the Chinese-English dual-language touch screen is bright in color, easytooperate, intuitive and intuitive, and efficient. With automatic warning protection function, reducing losses.
| VK-LS420 | VK-LS520 | |
| Film width | 120mm-420mm | 160mm-520mm |
| Packing speed | 5-70bag/min | 5-65bag/min |
| Bag size | (L)60-300mm (W)50-200mm | (L)80-350mm (W)70-250mm |
| Film thickness | 0.04-0.09mm | |
| Packing capacity | 2.5L | 4.3L |
| Machine size | 1460×1050×1410mm | 1480×1130×1450mm |
| Machine weight | 400kg | 480kg |
