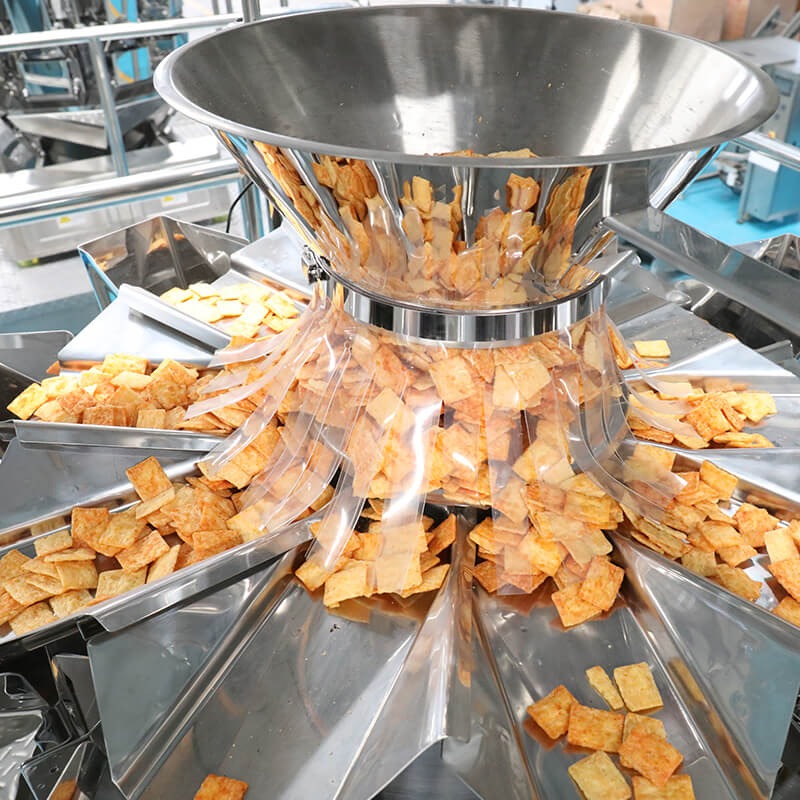

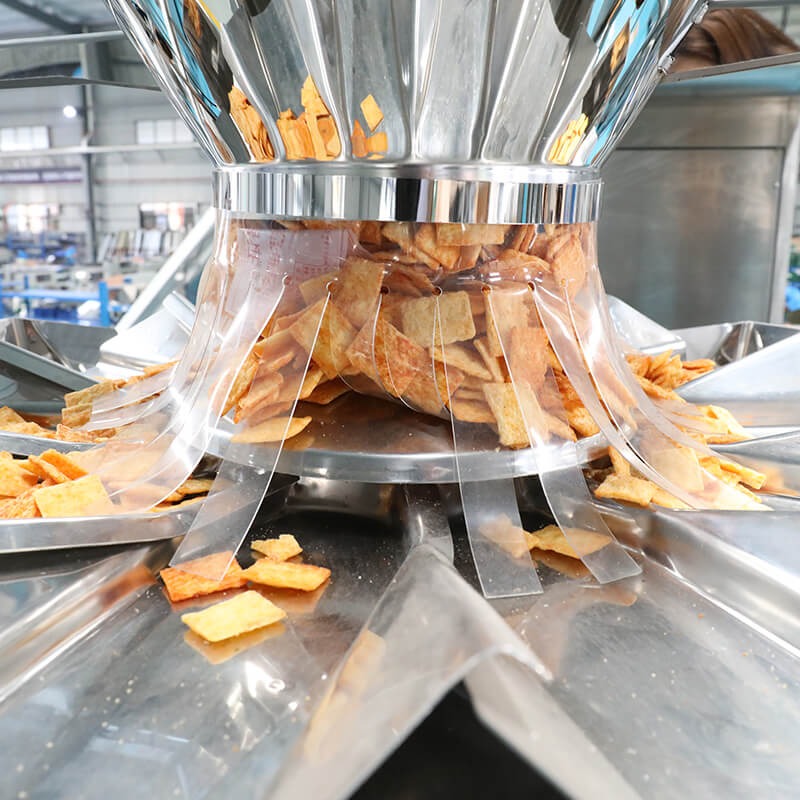

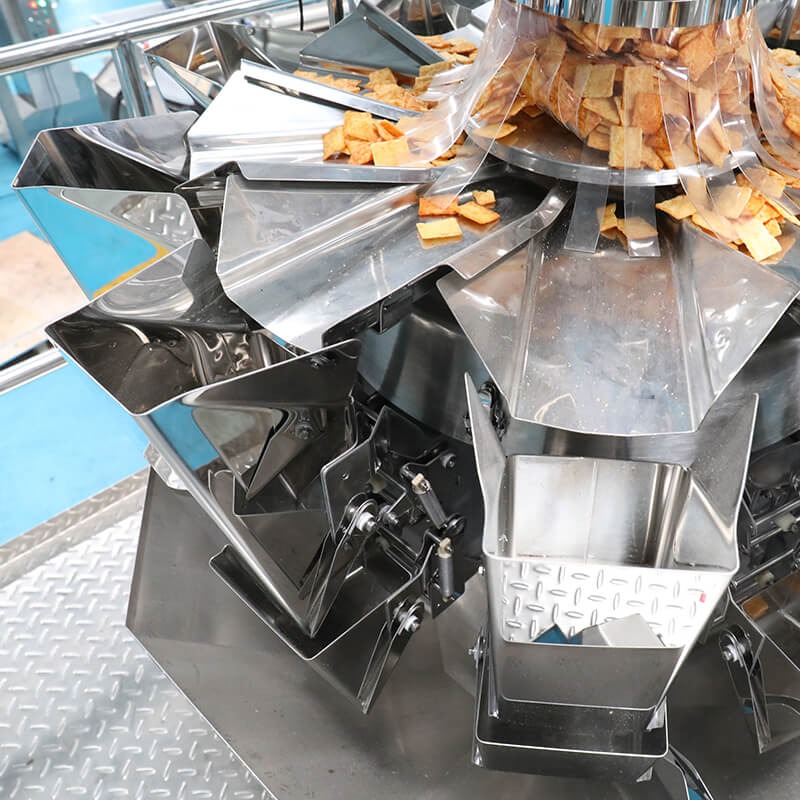

Suitable for noodles, vermicelli, chicken feet, tempeh, dumplings, meatballs, fruits and vegetables, potato chips, peanuts, sunflower seeds, candies, nuts, millet, rice, edible salt, Isatidis root, etc. Choose different metering and feeding methods according to particle size.
Material Size: Width: 30-280mm; Height: 30mm-100mm
Packaging film: PPOP/CPP, POPP/VMCPP, CPP/PE and so on.
The motor of the packaging machine can be a variable frequency motor or a servo motor. The servo motor can control the length of the package through the sensor, and the equipment automatically adjusts. Frequency conversion motors need to be adjusted on system.

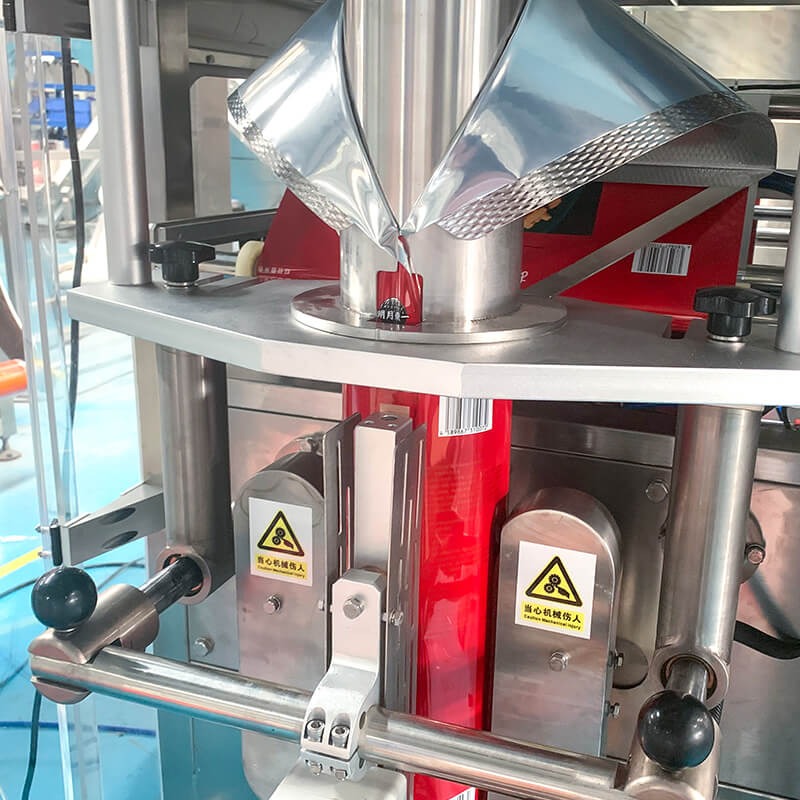

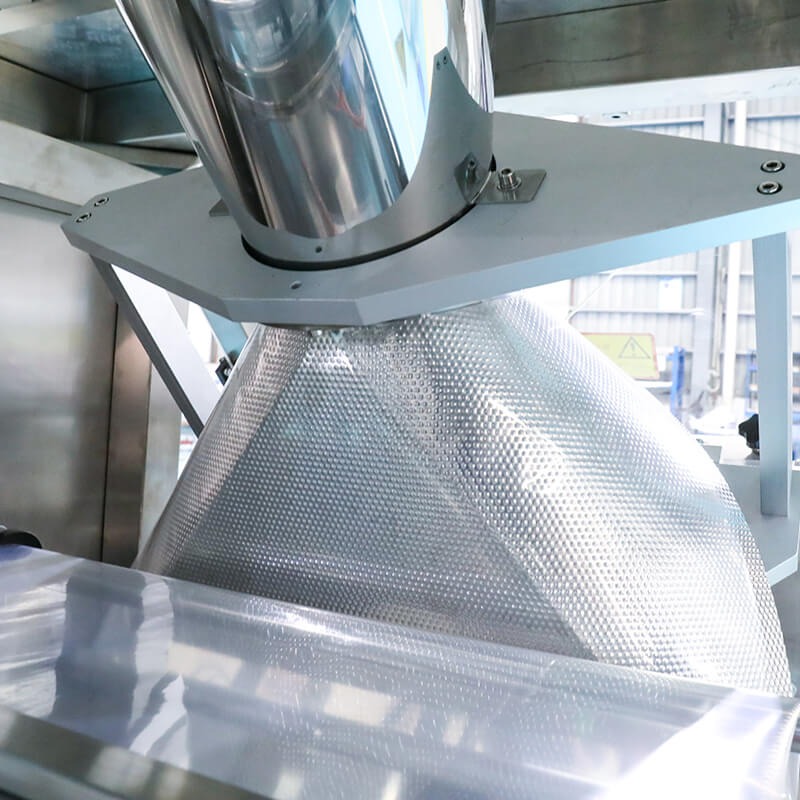

The width of the packaging can be adjusted by changing the size of the packaging film and adjusting the size of the former
| Model | VK-620 | VK-730 |
| Packing speed | 50bag/min | 45bag/min |
| Bag-making size | 200-400*100-300mm | 200-450*140-350mm |
| Type of bag making | pillow bag，gusseted bag，punched hanging bag | pillow bag，gusseted bag，punchedhanging bag |
| Max.Film width | 620mm | 730mm |
| Film thickness | 0.04-0.09mm | 0.06-0.12mm |
| Air consumption | 0.8Mps 0.5m3/min | 0.8Mps 0.5m3/min |
| Supply voltage | 4Kw 220V 50Hz | 4.5Kw 220V 50Hz |
| Machine size | 1345*1580*1950 | 1780*1350*2050 |
| Host weight | 800kg | 900kg |
