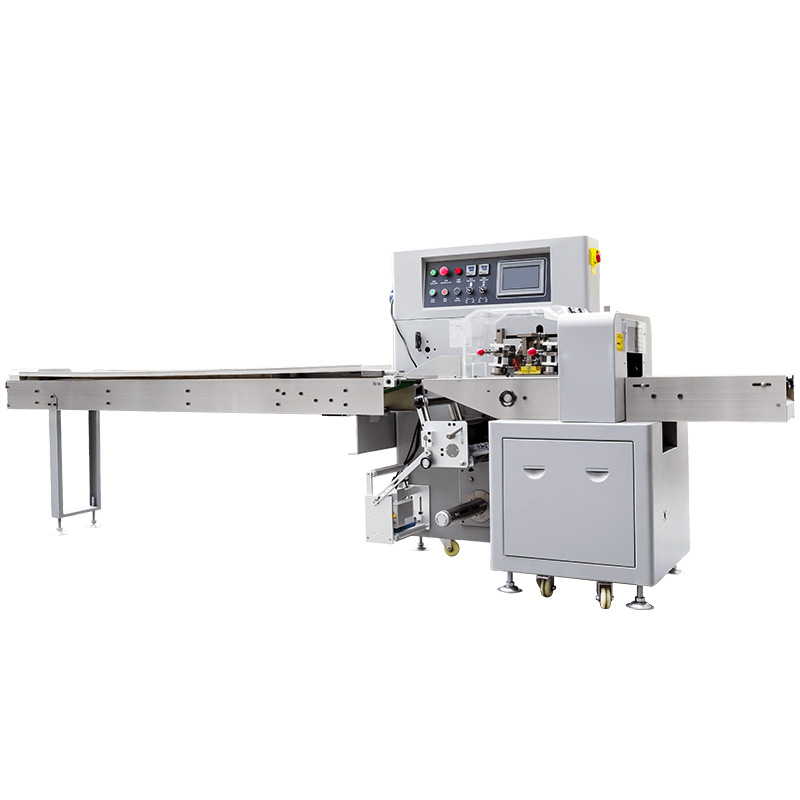

Servo Motor Pillow Bag Packaging Machine

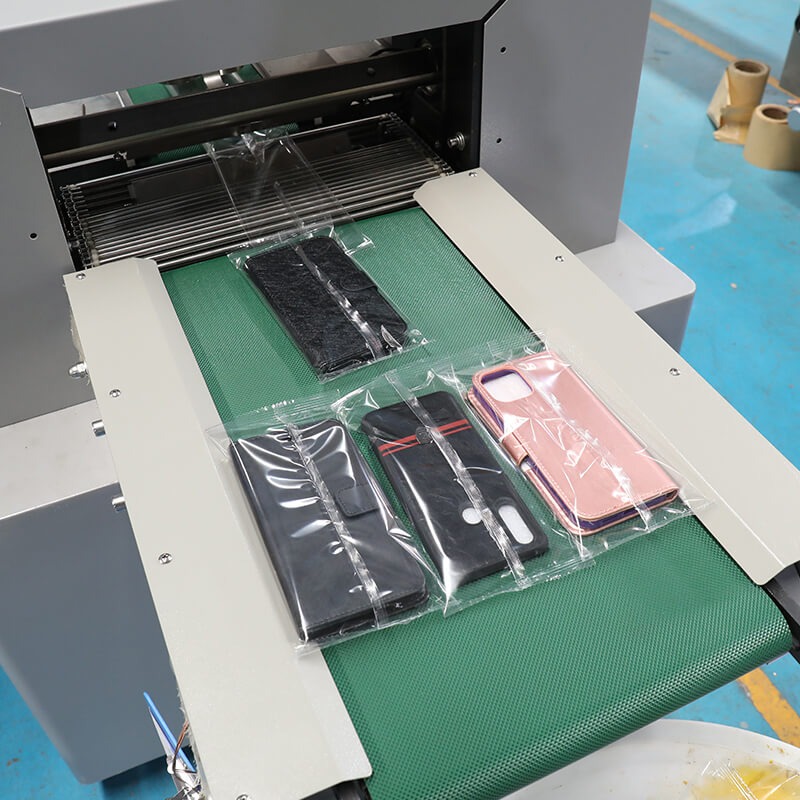

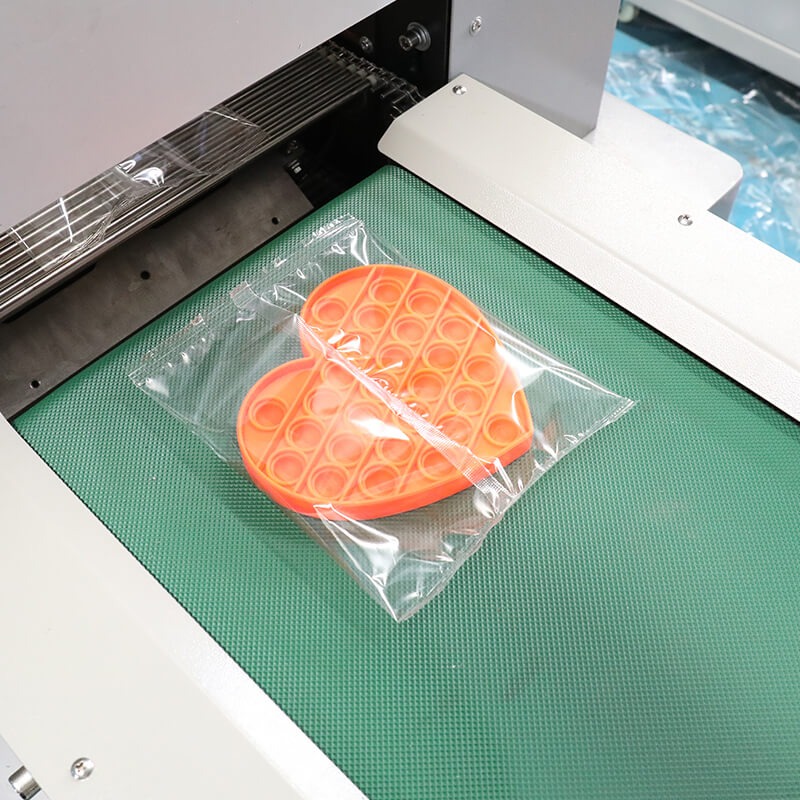

The equipment is mainly used in napkin, soap, electric mosquito coil, pharmaceutical and industrial parts, single or grain block, bulk meterials packaging.

DetailsParameterVideoApplication

Unlimited packaging length, using advanced optical fiber sensor, automatically identify the length of the product, and automatically seal and cut the packaging bags;
No need to fix the product position,the sensor automatically recognizes the packaging distance;
No need to manually adjust the position of packaging materials;

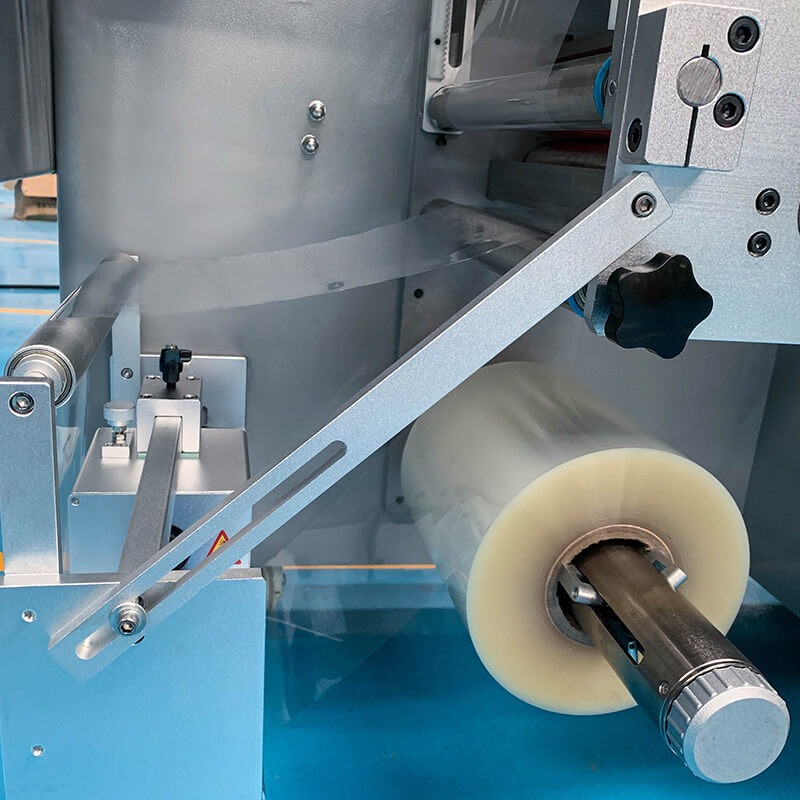

Feeding parts and film running structure are controlled by servo motors , realize the function of infinitely variable speed, easier operation;

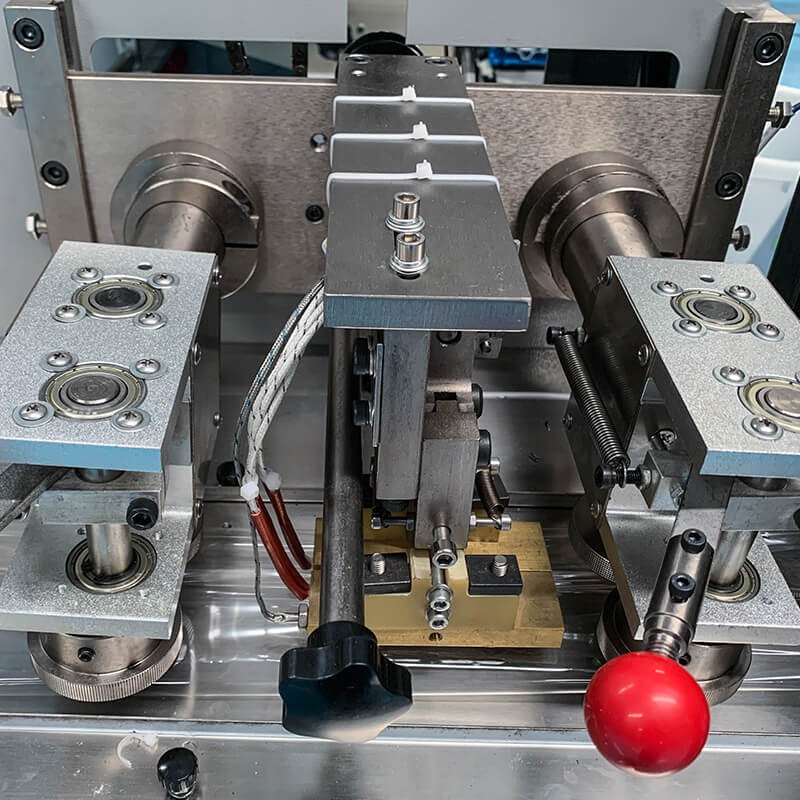

Servo motor controls the cutter, anti-empty bag, anti-cutting function;
Servo control, easier operation, higher controll ability and more precise;

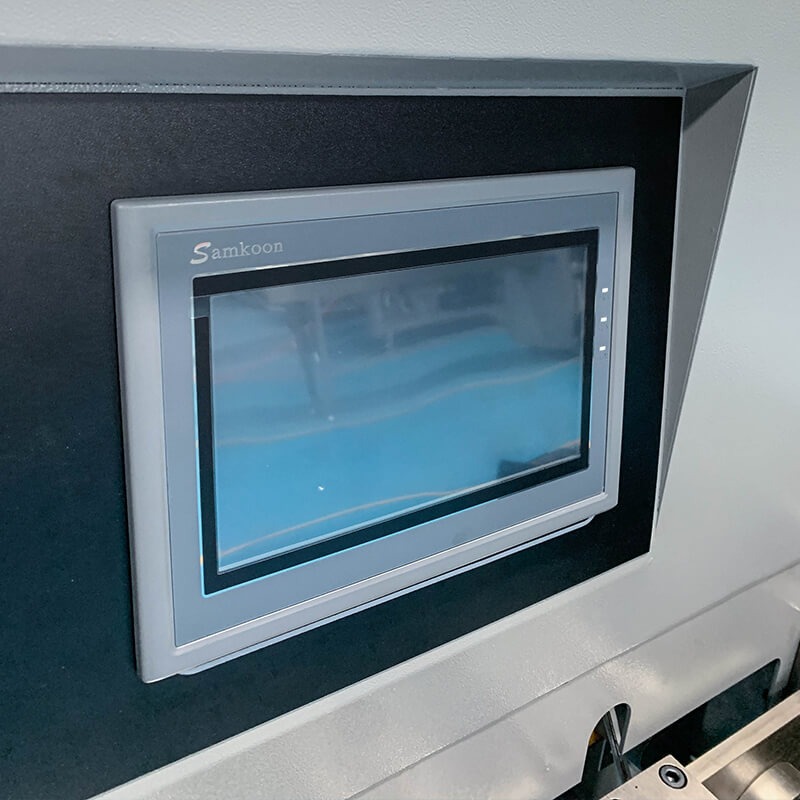

The control adopts its own program, which can be upgraded and increase the system control points according to user's requirement.

Type	VK-250	VK-320	VK-350	VK-450	VK-600
Film width	Max.250mm	Max.320mm	Max.350mm	Max.450mm	Max.600mm
Bag length	65-190/120-280mm 90-220mm	65-190/120-280mm 90-220/150-330mm	65-190/120-280mm 90-220/150-330mm	130-450mm	120-500mm
Bag width	30-110mm	50-160mm	50-160mm	50-180mm	100-280mm
Product height	Max.40-55mm	Max.45-60mm	Max.40-60mm	Max.75mm	Max.110mm
Fim roll diameter	Max.320mm
Packing speed	40-230bag/min	40-230bag/min	40-230bag/min	30-150bag/min	20-150bag/min
Power 220v50/60HZ	2.4KW	2.6KW	2.6KW	3.2KW	3.6KW
Machine quality	33706701450	33707201450	40207701450	40208201450	40209201460
Machine quality	450kg	500kg	580kg	650kg	680kg
Optional device	Coding machine，gas-filling device，Fall bread machine，Richard machine
Packaging material	Or example, single-layer heat-sealed BOPP or composote film such as OPP composite PE-PET composite PE
Bag shape	Backpack packaging（customizable hanging hole round hole/butterfly hole）
Sealing grain	Reticulated seal/stripe seal cutter sawtooth/flat and V easy tear
