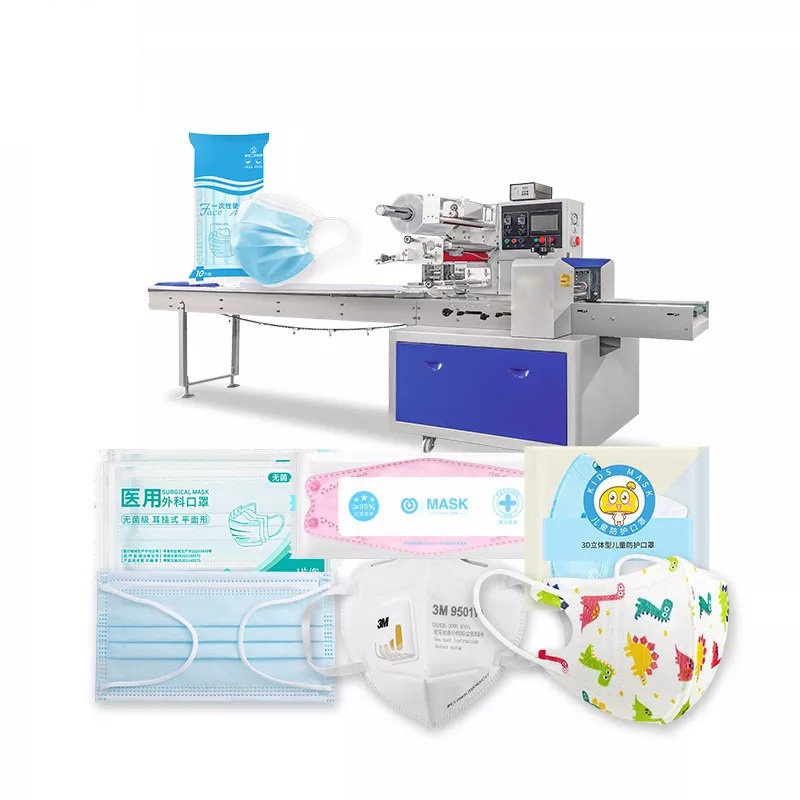

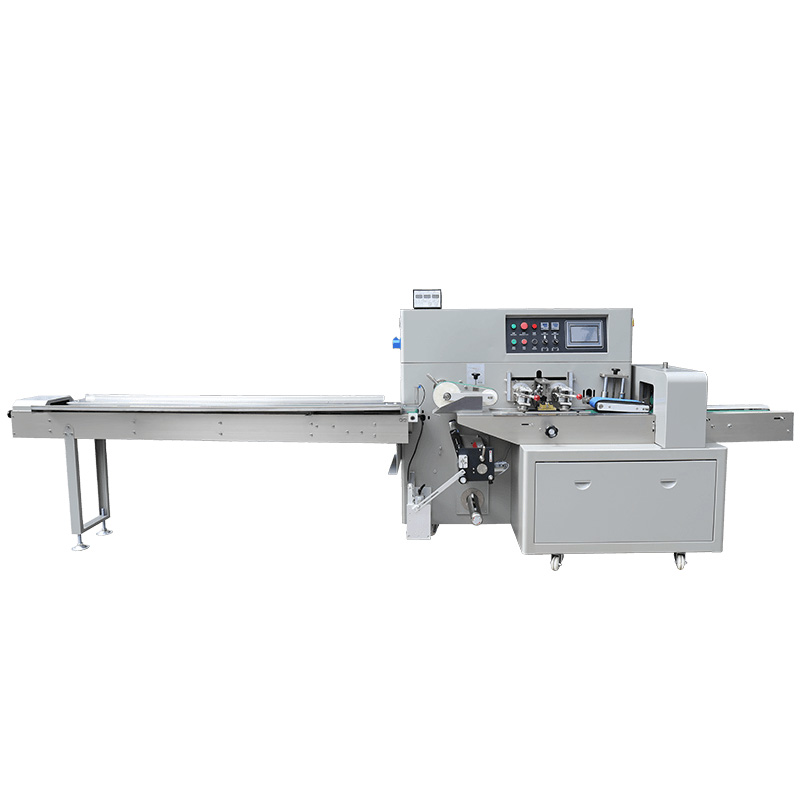

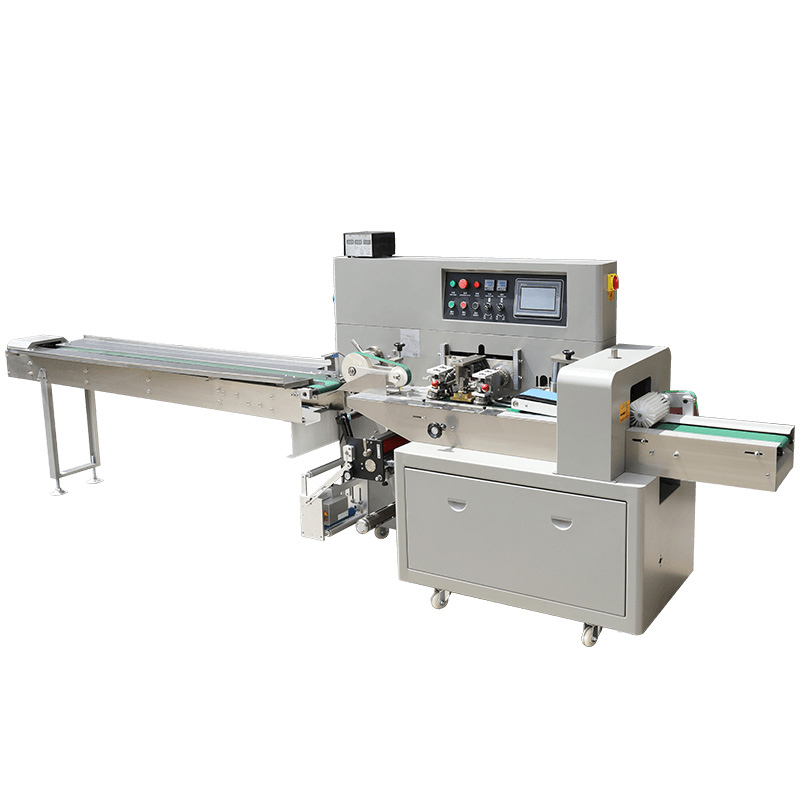

Mask Flow Packing Machine - BaZhou Industrial

The equipment is mainly used in instant noodles, biscuits, snow cakes, shahe powder, rice dumplings, chocolate, moon cakes, sorbet, bread yolk pie, seaweed, napkin, soap, electric mosquito coil, pharmaceutical and industrial parts, single or grain block, bulk meterials packaging.

DetailsParameterVideoApplication

Unlimited packaging length, using advanced optical fiber sensor, automatically identify the length of the product, and automatically seal and cut the packaging bags;
No need to fix the product position,the sensor automatically recognizes the packaging distance;
No need to manually adjust the position of packaging materials;

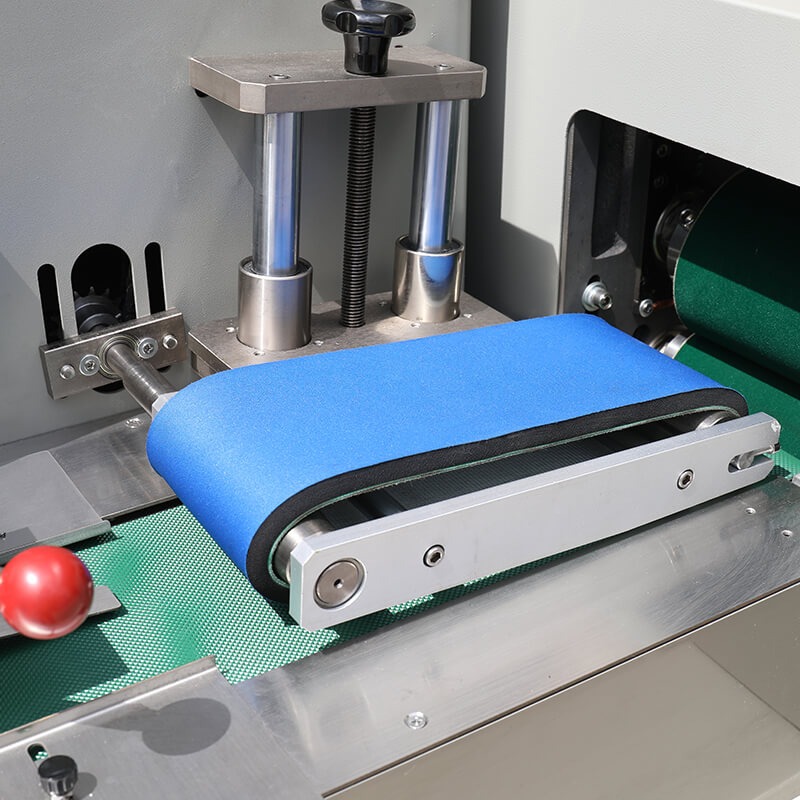

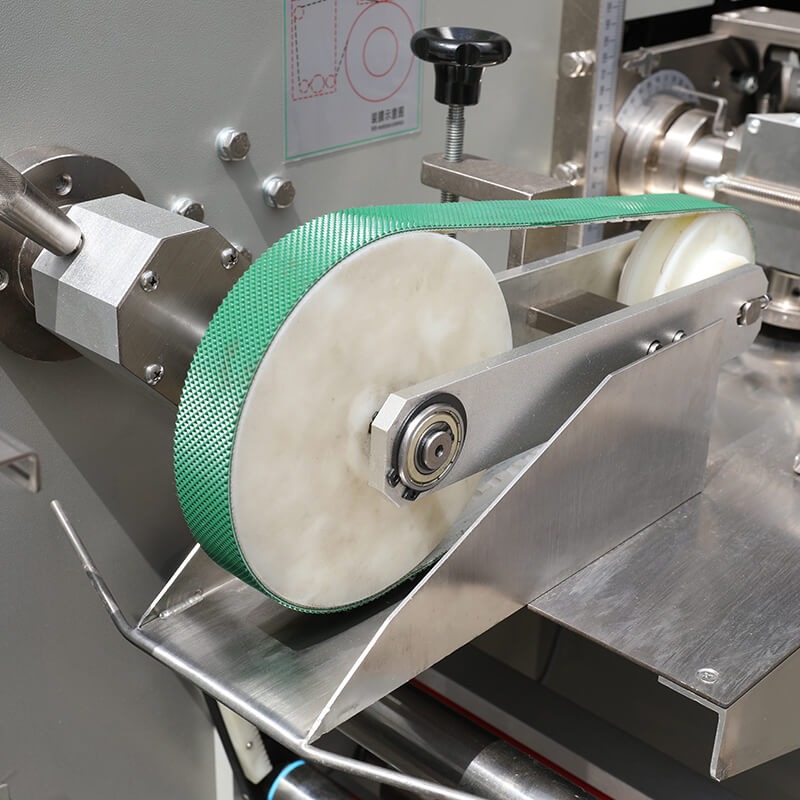

Feeding parts and film running structure are controlled by servo motors , realize the function of infinitely variable speed, easier operation;
Servo motor controls the cutter,anti-empty bag,anti-cutting function;
Servo control, easier operation, higher controll ability and more precise;
The control adopts its own program, which can be upgraded and increase the system control points according to user's requirement.

Type	VK-250X	VK-350X
Film width	Max 250mm	Max 250mm
Bag length	unlimited
Bag width	30-110mm	50-160mm
Product height	Max 40-60mm	Max 40-60mm
Fim roll diameter	Max 320mm
Packing speed	40-230bag/min	40-230bag/min
Power220V 50/60Hz	4.1kW	4.3kW
Machine size（L×W×H）	3877×670×1390mm	3980×830×1390mm
Machine weight	450kg	580kg

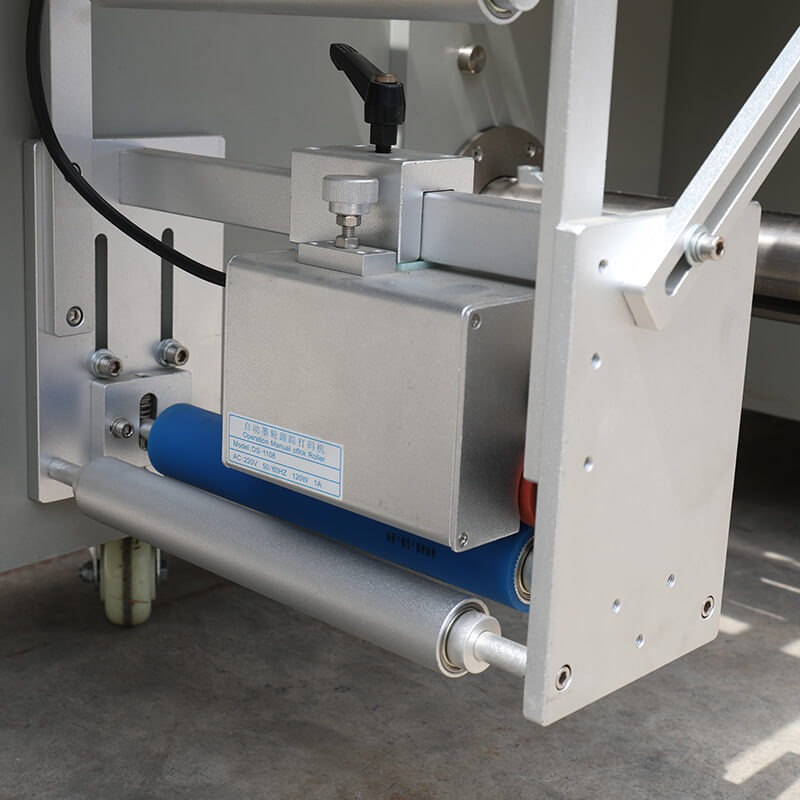

Optional device	Coding machine, Gas-filling device, Cake falling device, Sorting machine
Packaging material	For example single-layer heat sealing BOPP or composite film such as OPP composite PE, PET composite PEF
Bag type	Back-sealed package (hanging hole round hole/butterfly hole can be customized )
Horizontal sealing /Blade grain	Cutter edge serrated/flat edge plus V easy tear
