Horizontal Stand Up Pouch Doypack Packing Machine

Usage: Food pouch packaging; nuts stand up pouches paking, candy pouches packing, coffee powder, liquid packing.

1. Horizontal Form Fill Seal machine.

2. Specially designed for the needs of stand-up pouch packaging.

3. Can realize the fully automatic process of stand-up pouch forming, filling and sealing; equipped with different filling systems, powder, liquid or granule materials packing are avaliable.

4. HFFS doypack packing machine.

5. Fully automatic operation; Multi Function Packaging Machines.

6. Adopted for stand-up pouches, special-shaped sachets, spouted stand up pouches; zipper pouches and hanging holes.

DetailsParameterVideoApplication
Horizontal-Stand-Up-Pouch-Doypack-Packing-Machine-Process

(1)Film Unwind(5)Bottom Seal(9)Vertical Cooling II(13)Pouch Mechanism(17)Pouch Stretching
(2)Bottom Hole Punching(6)Vertical Seal I(10)Photocell(14)Pouch Opening(18)Heat Sealing
(3)Pouch Forming(7)Vertical Seal II(11)Servo Advance(15)Air Flushing(19)Cool Sealing
(4)Film Guide(8)Vertical Cooling I(12)Form Punching(16)Filling(20)Finished Product

Horizontal-Stand-Up-Pouch-Doypack-Packing-Machine-Application

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

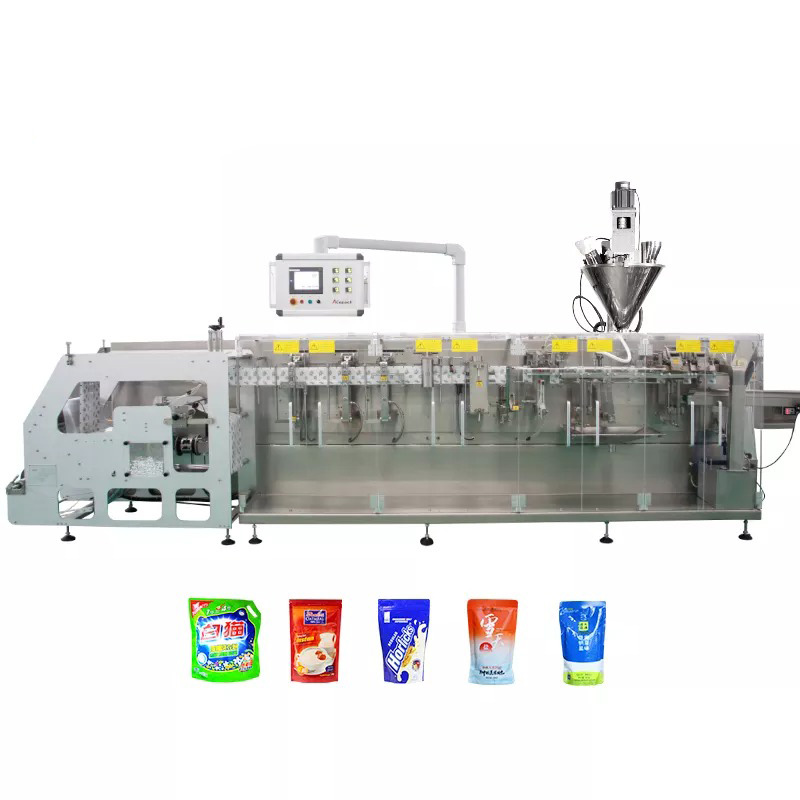

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

B. Liquid Packing Solution

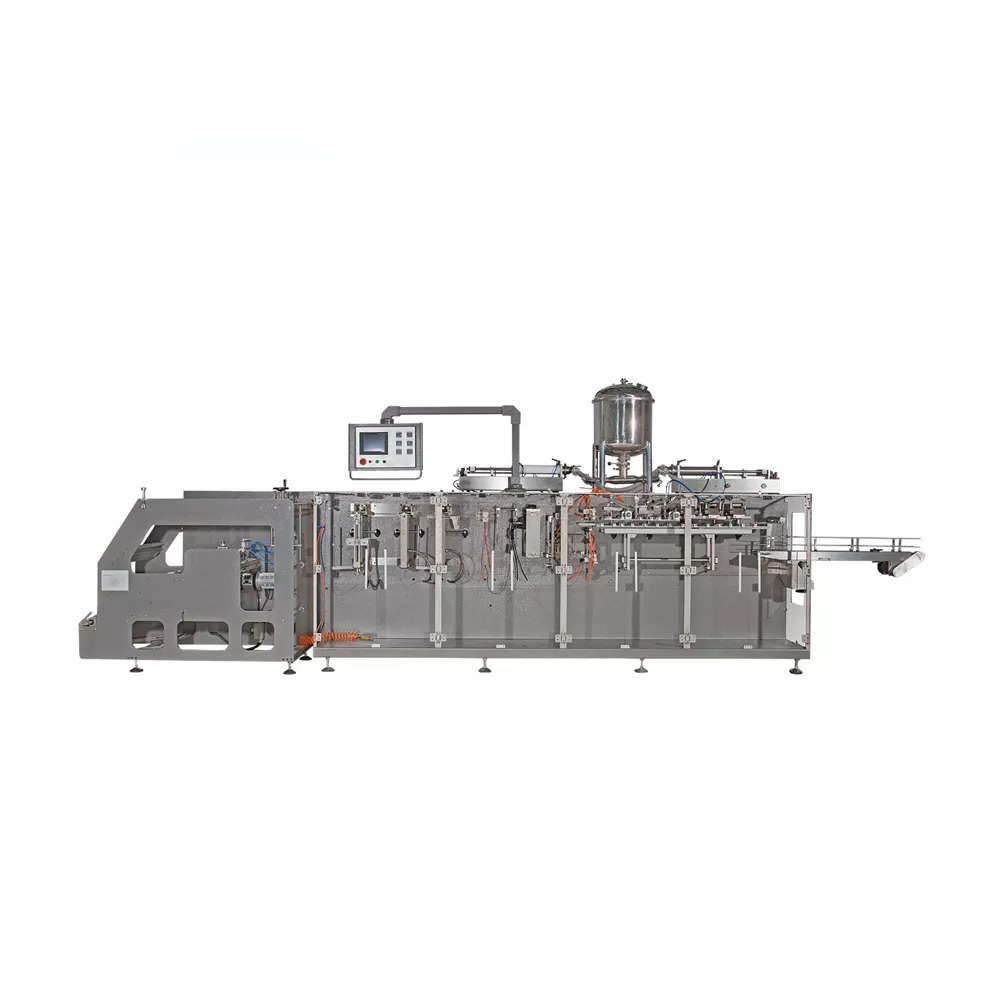

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

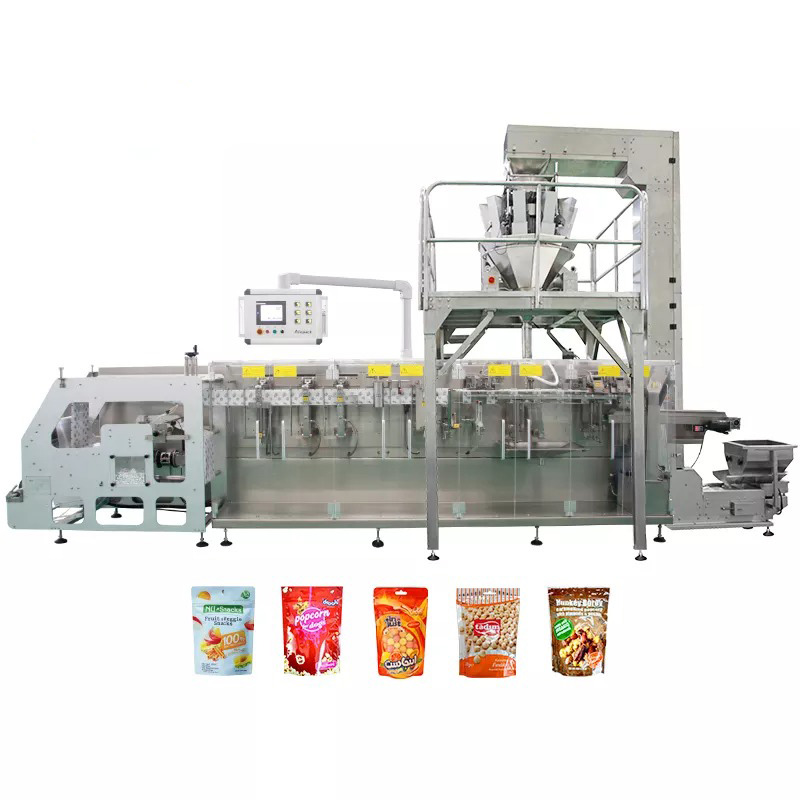

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

Horizontal Stand Up Pouch Doypack Packing Machine Bag Type

ModelDS-140SDS-180SDS-240SDS-280DSDS-360DS
Maximum Packing Volume300ml1200ml2000ml800ml1200ml
Max Pouch Size140mm*200mm180mm*260mm240mm*350mm140mm*260mm180mm*260mm
Min Pouch Size60mm*90mm90mm*110mm100mm*120mm90mm*110mm90mm*110mm
Packing Speed40-60ppm40-60ppm30-60ppm80-120ppm80-120ppm
Air Consumption200NL/min200NL/min300NL/min700NL/min500NL/min
Input Power6.5kw6.5kw8kw10kw10.5kw
Working Power SupplyAC 380V 50HzAC 380V 50HzAC 380V 50HzAC 380V 50HzAC 380V 50Hz
Equipment Weight1600kg2000kg2600kg4000kg4500kg
L*W*H4480*970*1400mm5550*1100*1400mm6900*1250*1400mm7400*1060*1400mm8700*1120*1400mm
