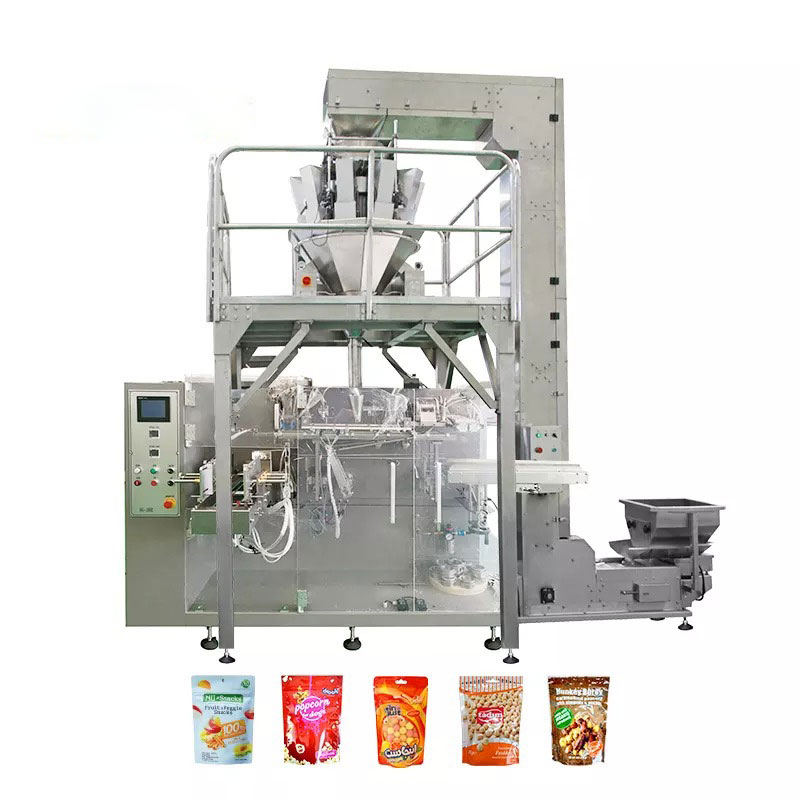

VK-SG-180 is automatic premade pouch packaging machine suitable for flat pouch and doypack pouch, small dimensions premade pouches filling and sealing. It is widely used in the packing fields of food,pharmaceuticals, house chemicals, cosmetics, etc. And it is suitable for powder, granule product and liquid product, etc. with different products, use different fillers. It is flexible and economic packing solution.

VK-SG-180 packaging machine can can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.

DetailsParameterVideoApplication
Horizontal Premade Standard Pouch Packing Machine Process

1.premade pouch stack3. pouching opening5. filling17. pouch stretching9. finished product
2.flip-out pouch-packing unit4. air flushing6. filling28. top seal10. outlet

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Machine dimensions1990*970*1390(L*W*H, mm)
weight700kg
Electric supplyAC380V 50Hz
power1.8Kw
air supply0.5MPa
Air consumption200NL/min
Packaging capacity30-60ppm
Wide size60mm-180mm
High size80mm-225mm
Max filling capacity500ml
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application

Liquid Paste Sauce Premade Pouch Packing Machine Application
