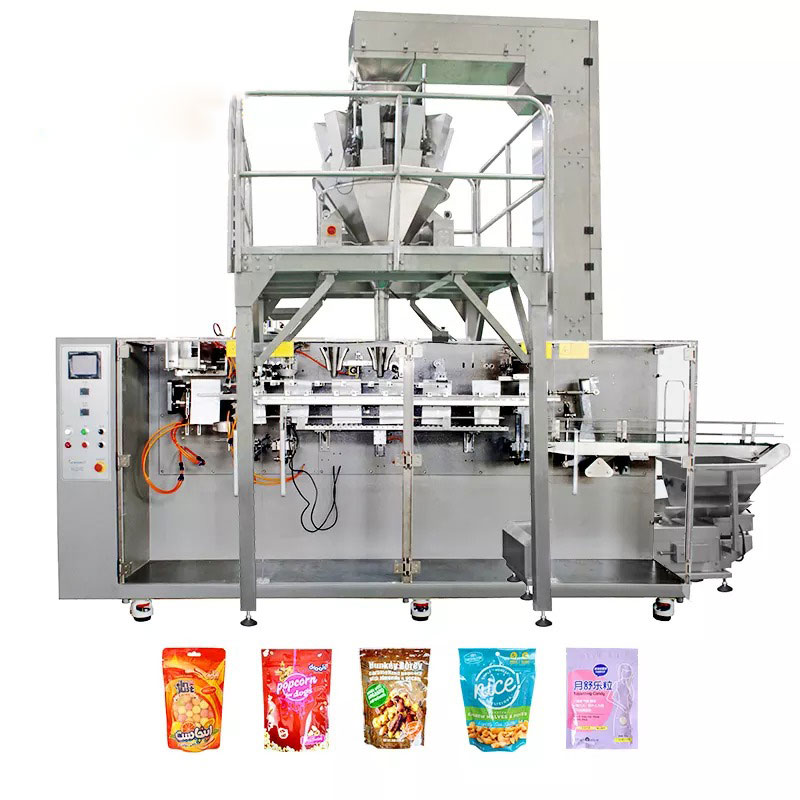

Horizontal Form Premade Zipper Pouch Fill Seal Machine

Horizontal Form Premade Zipper Pouch Fill Seal MachineHorizontal Form Premade Zipper Pouch Fill Seal Machine
Horizontal Form Premade Zipper Pouch Fill Seal MachineHorizontal Form Premade Zipper Pouch Fill Seal Machine
Horizontal Form Premade Zipper Pouch Fill Seal MachineHorizontal Form Premade Zipper Pouch Fill Seal Machine
Horizontal Form Premade Zipper Pouch Fill Seal MachineHorizontal Form Premade Zipper Pouch Fill Seal Machine

This pre-made packing machine is mainly suitable for self-reliance bags, flat bags, hanging hole bag and special shape bag filling and sealing, especially for zipper self-reliance bags, zipper bags increase automatic opening and closing zipper function. Can packaging materials such as liquid, powder, granule and suspending agent all kinds of materials. It is particularly suitable for all kinds of roasted seeds and nuts dried fruit, candy, chocolate, powder packaging. For ordinary flat bag packaging bag type, ordinary self-reliance bags, all kinds of heterotypic bag packaging. Can choose different filling device, packing different products, it adapts to the large span packaging specifications, packaging type variety, frequent switching companies.

DetailsParameterVideoApplication
Horizontal Form Premade Zipper Pouch Fill Seal Machine Process

1. Premade Pouch Convryer 2. Fit-Out Pouch -Picking Unit 3. Zipper Opening 4. Pouch Opening 5. Air Flushing 6. First Filling 7. Second Filling 8. Top Seal I 9. Top Seal II 10. Finished Product 11. Outlet

Horizontal Form Premade Zipper Pouch Fill Seal Machine Application

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

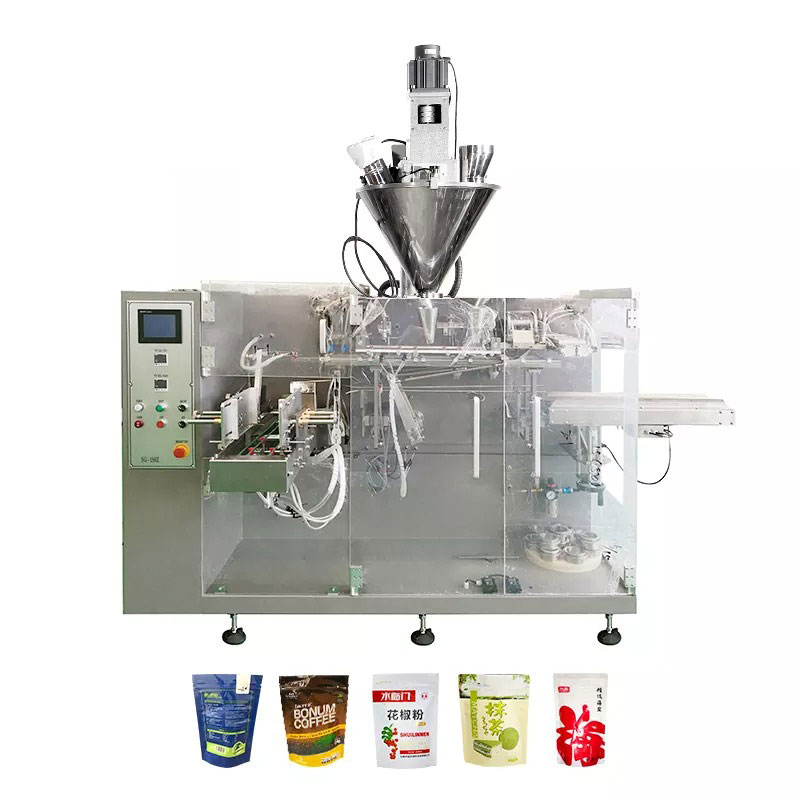

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

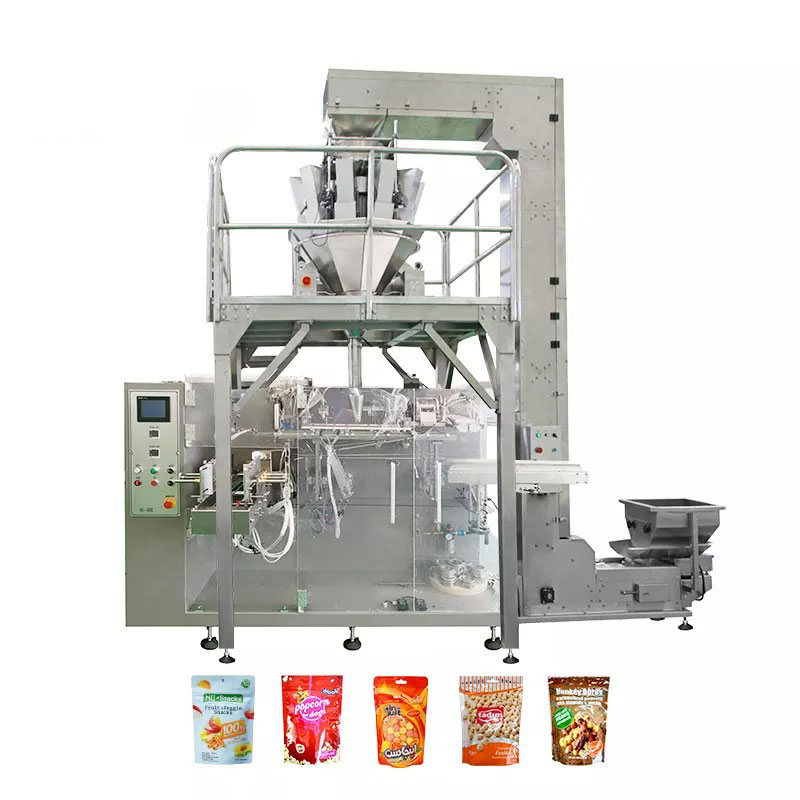

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

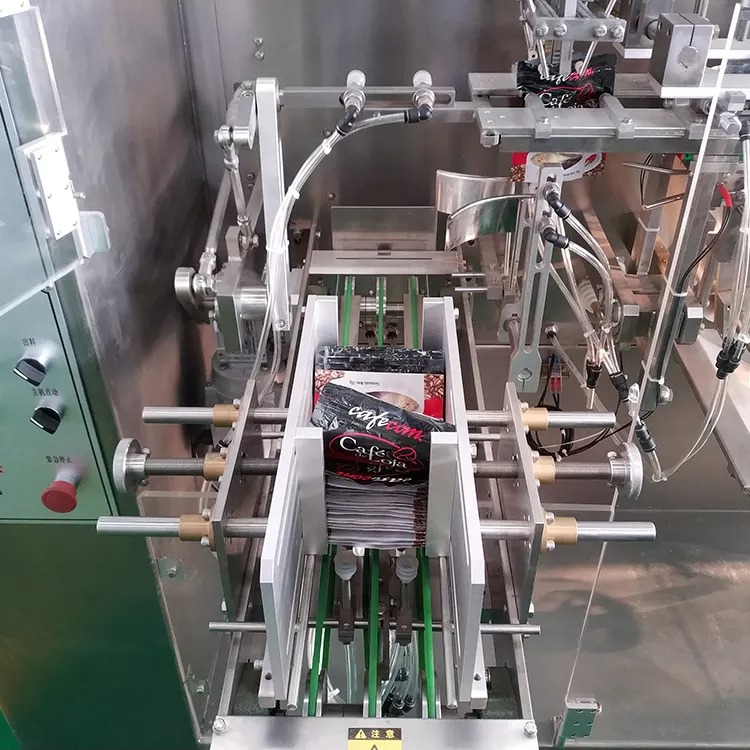

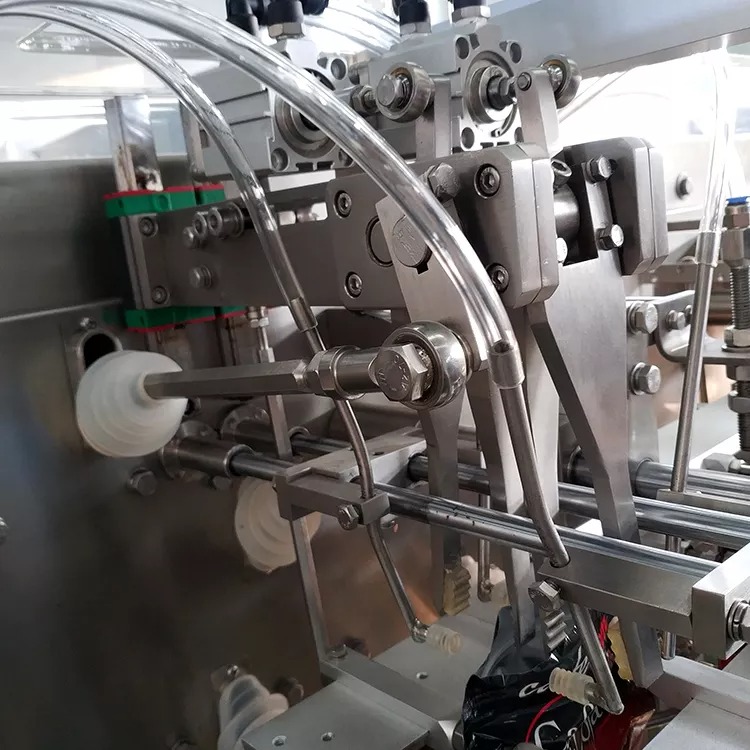

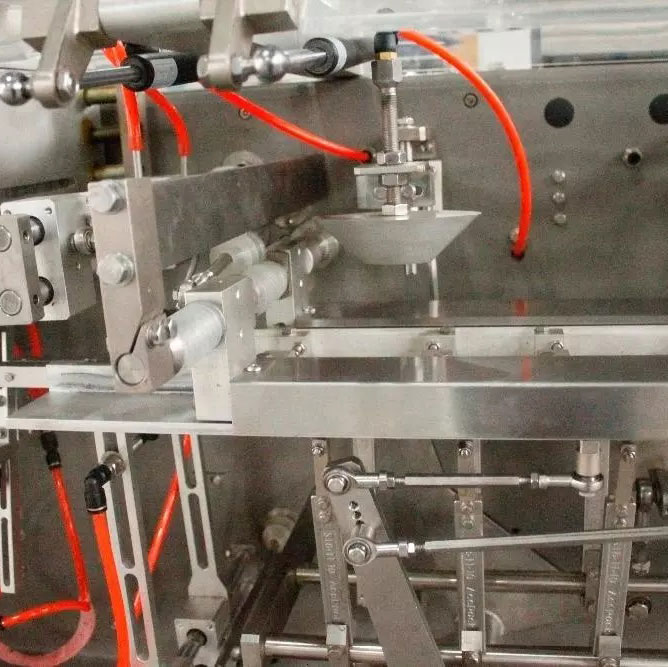

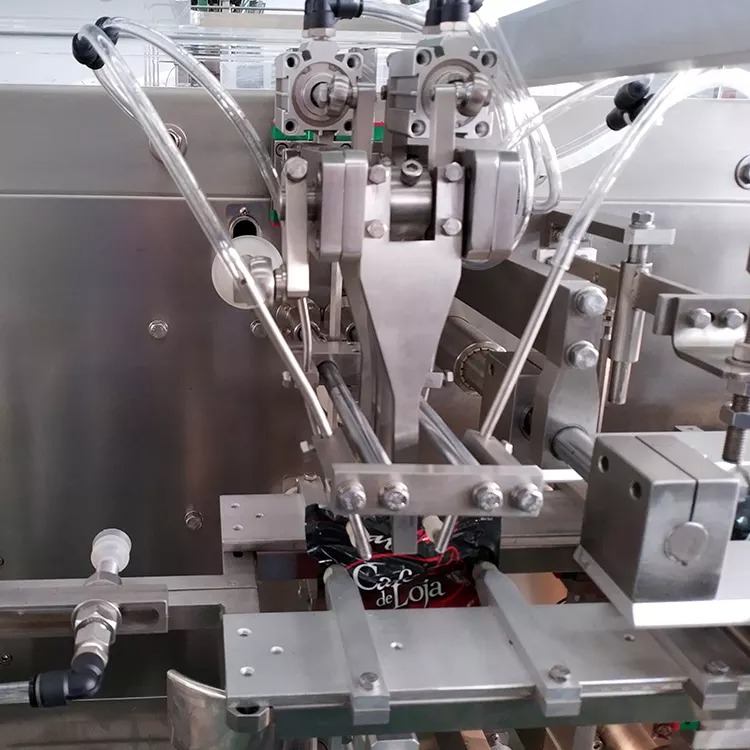

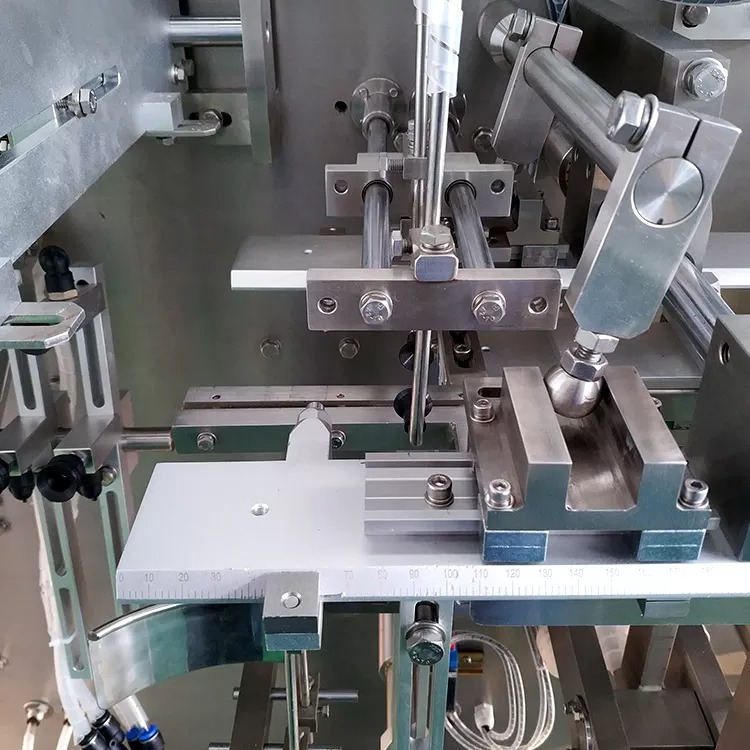

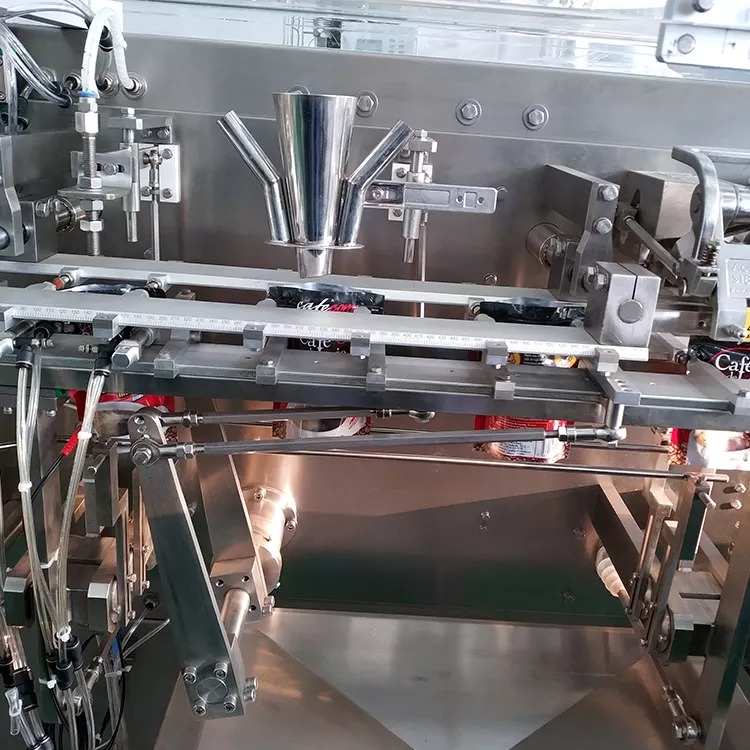

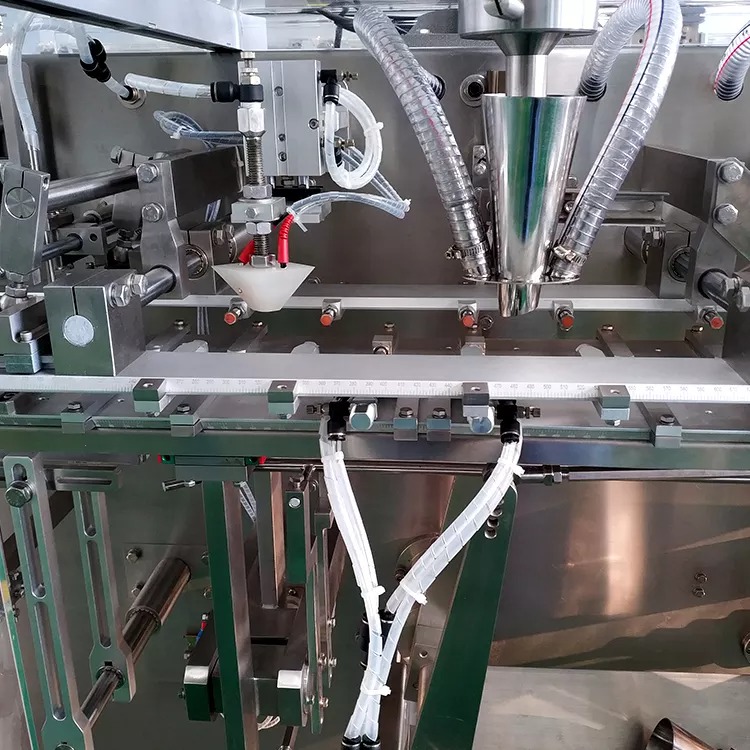

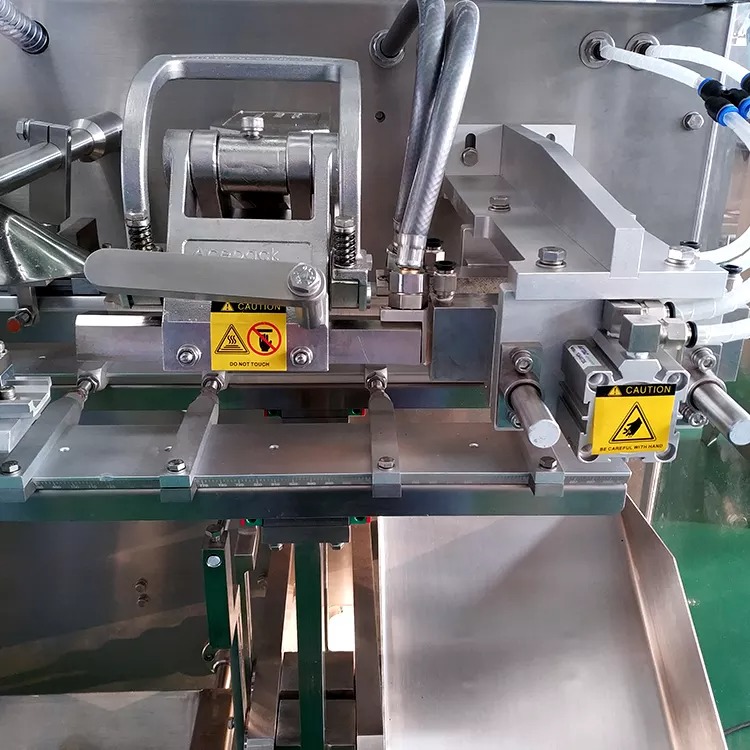

Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Premade Standard Pouch Packing Machine DetailsHorizontal Premade Standard Pouch Packing Machine Details
Horizontal Form Premade Zipper Pouch Fill Seal Machine

Machine dimensions3120*970*1400(L*W*H, mm)
weight1000kg
Electric supplyAC380V 50Hz
power4.5Kw
air supply0.5MPa
Air consumption200NL/min
Packaging capacity30-60ppm
Wide size90mm-210mm
High size110mm-310mm
Max filling capacity1200ml
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application
Horizontal Premade Standard Pouch Packing Machine ApplicationHorizontal Premade Standard Pouch Packing Machine Application

Liquid Paste Sauce Premade Pouch Packing Machine Application
