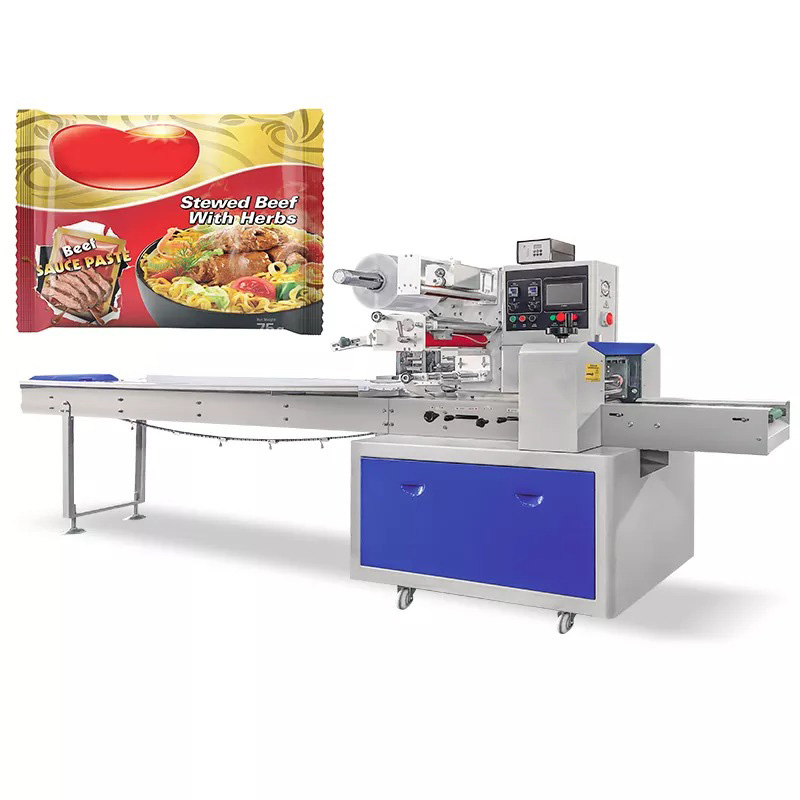

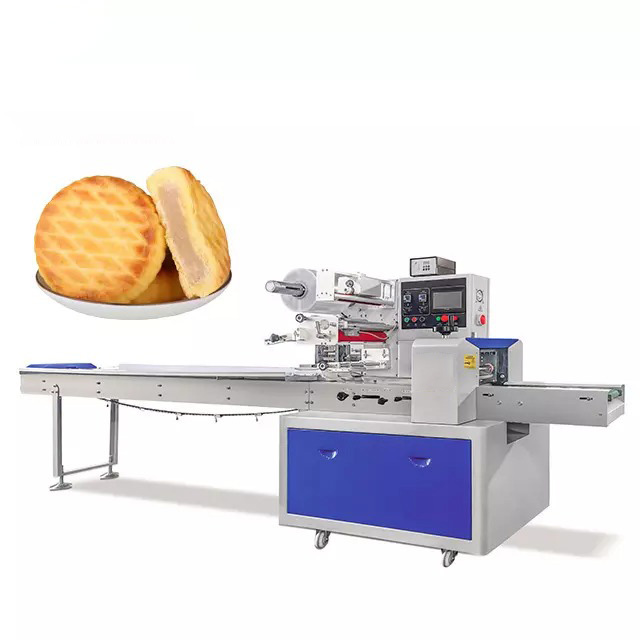

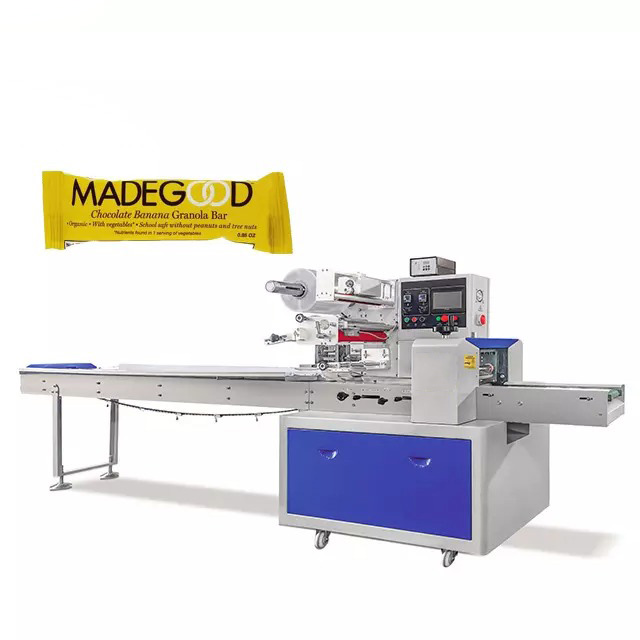

Horizontal Flow Food Packing Machine

Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, eggroll, vegetable etc.

DetailsParameterVideoApplication

Double-servo and single frequency conversion control, bag length can be set and cut in one step, saving time and film.
No empty bag packing. Automatic stop in case of material absence, run film cutter stop, push material automatic to supply.No empty bag packing, without wasting film, need not make up the material artificially.
Self failure diagnosis, clear failure display.
High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
Temperature independent PID control, more suitable for packaging different materials.
Recoprocating type sealing device, firmer sealing,no wasting in mould sealing cutter.
Terminal sealing device, more beautiful bag shape, improving products level.
Positioned stop function, without sticking knife or wasting film. Simple driving system, reliable working, convenient maintenance.
All control is realized through software, easy for function adjusting and technical upgrade.

	VK-250	VK-350	VK-450	VK-600
Film width	Max 250mm	Max 350mm	Max 450mm	Max 600mm
Bag length	70-400mm
Bag width	30-110mm	50-160mm	50-210mm	50-280mm
Product height	Max40-60mm	Max 40-60mm	Max 75mm	Max 100mm
Fim roll diameter	Max 320mm
Packing speed	40-230bag/min	40-230bag/min	40-180bag/min	40-100bag/min
220V 50/60Hz	2.6kw	2.8kW	3.2kW	3.4kW
Optional device	Coding machine, Gas-filling device, Cake falling device, Sorting machine
Packaging material	For example single-layer heat sealing BOPP or composite film such as OPP composite PE, PET composite PEF
Bag type	Back-sealed package (hanging hole round hole/butterfly hole can be customized )
Horizontal sealing /Blade grain	Cutter edge serrated/flat edge plus V easy tear
