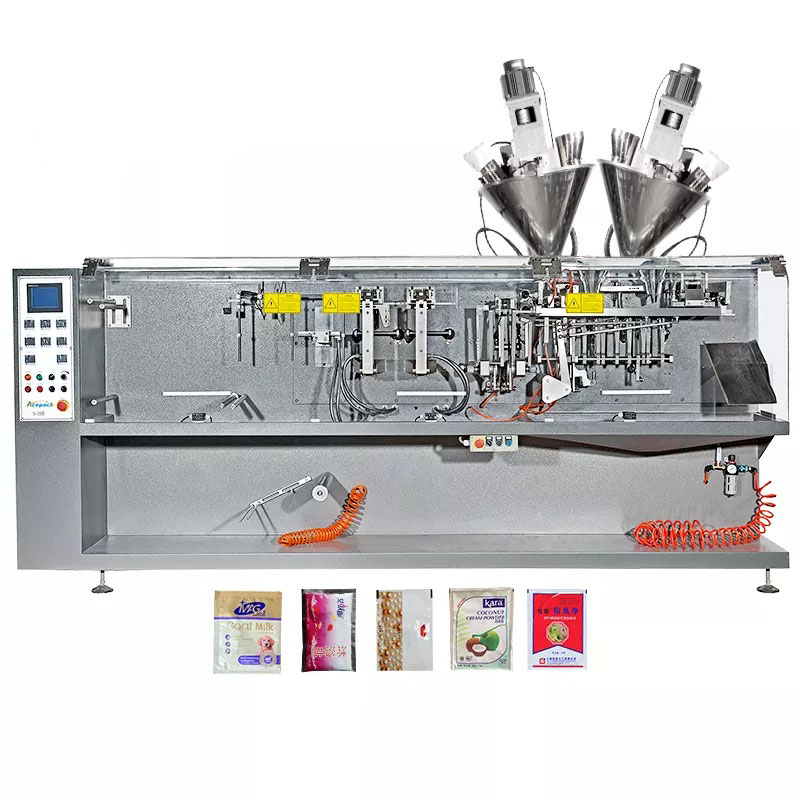

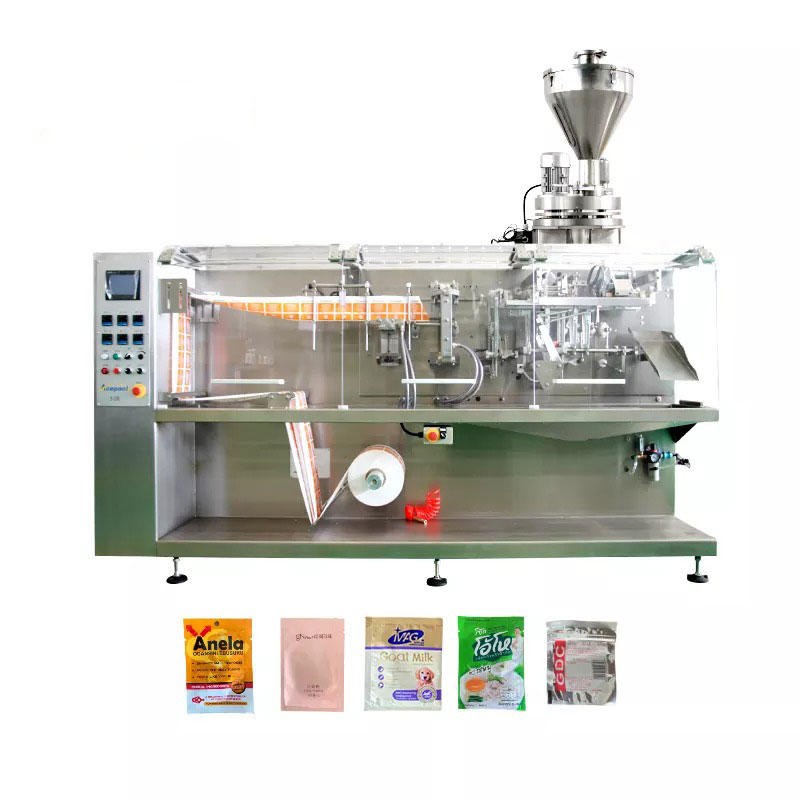

It can adapt to various heat-sealing multi-layer composite films. It can automatically complete the process of pouch forming, bag making, loading and unloading and filling and packaging. It is an overall packaging solution for fast packaging of pouches. The series of pouch packaging models are specially designed for three-side sealing Or four-side sealed flat bag, formed by roll film, liquid or solid filling, hot top sealing. It can realize the packaging of standard three-side or four-side sealed flat bag, flat bag with zipper, flat bag with straight suction nozzle or diagonal suction nozzle automatic packaging.
| （1） Film Unwind | （5）Vertical Seal I | （9）Servo Advance | （13）Filling I | （17）Output |
| （2） Pouch Forming | （6）Vertical Seal II | （10）Cutting | （14）Filling II | |
| （3） Film Guide | （7）Tear Notch | （11）Pouch Catching | （15）Heat Sealing | |
| （4）Bottom Seal | （8）Photocell | （12）Pouch Opening | （16）Finished Product |
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
E. More Packing Solution
For more solution, welcome to contact us.
| Model | S-110 | S-130 | S-180 | S-180D | S-240 | S-240D | S-360D |
| Maximum Packing Volume | 60ml | 260ml | 400ml | 100ml | 1000ml | 180ml | 400ml |
| Max Pouch Size | 110mm*120mm | 140mm*220mm | 180mm*225mm | 90mm*180mm | 240mm*310mm | 120mm*225mm | 180mm*225mm |
| Min Pouch Size | 50mm*50mm | 50mm*80mm | 50mm*80mm | 50mm*80mm | 100mm*120mm | 65mm*80mm | 65mm*80mm |
| Packing Speed | 40-80ppm | 40-80ppm | 40-80ppm | 120-160ppm | 30-60ppm | 100-160ppm | 80-120ppm |
| Air Consumption | 0NL/min | 100NL/min | 200NL/min | 200NL/min | 300NL/min | 200NL/min | 500NL/min |
| Input Power | 2kw | 3.5kw | 4.5kw | 4.5kw | 5.5kw | 5.5kw | 10.5kw |
| Working Power Supply | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 520kg | 900kg | 1400kg | 1500kg | 2000kg | 1800kg | 2500kg |
| L*W*H | 2060*750*1400mm | 2850*970*1500mm | 3500*970*1500mm | 3550*970*1500mm | 4680*1000*1300mm | 4290*970*1500mm | 7070*970*1290mm |
