Flow Wrap Packing Machine With Pulling Film From End

Flow-Wrap-Packing-Machine-With-Pulling-Film-From-EndFlow-Wrap-Packing-Machine-With-Pulling-Film-From-End

It is suitable for sticky food such as rice cakes, glutinous rice balls, sticky beans, candies, glutinous rice dumplings and zongzi,etc.

DetailsParameterVideoApplication
  • Double frequency converter control, bag length is set and cut immediately, no need to adjust the empty running, one step in place, save time and film;

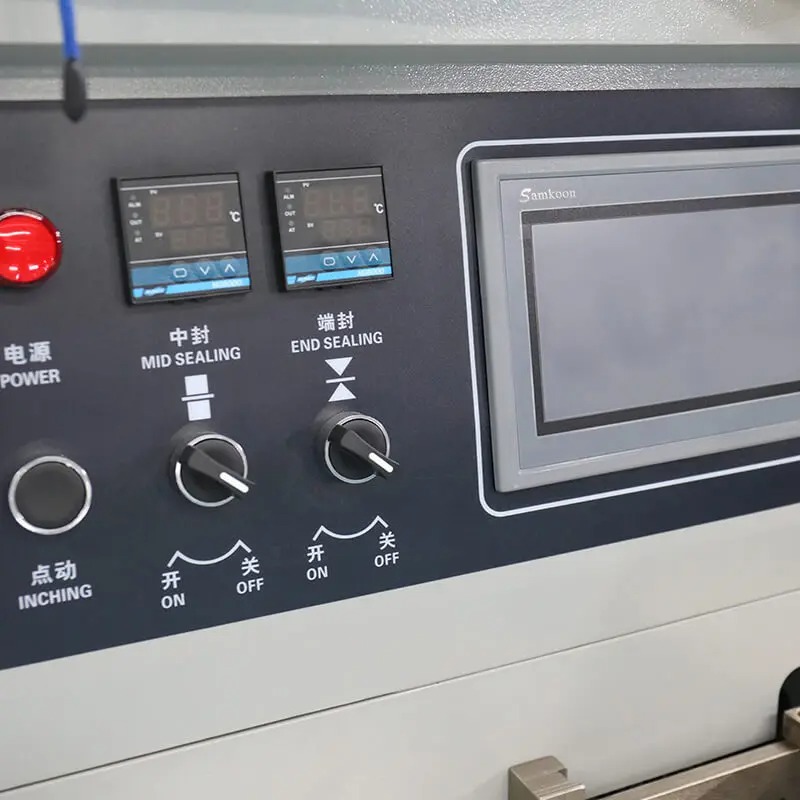

  • Human-machine interface, convenient and quick parameter setting;
  • Fault self-diagnosis function, fault display is clear at a glance;

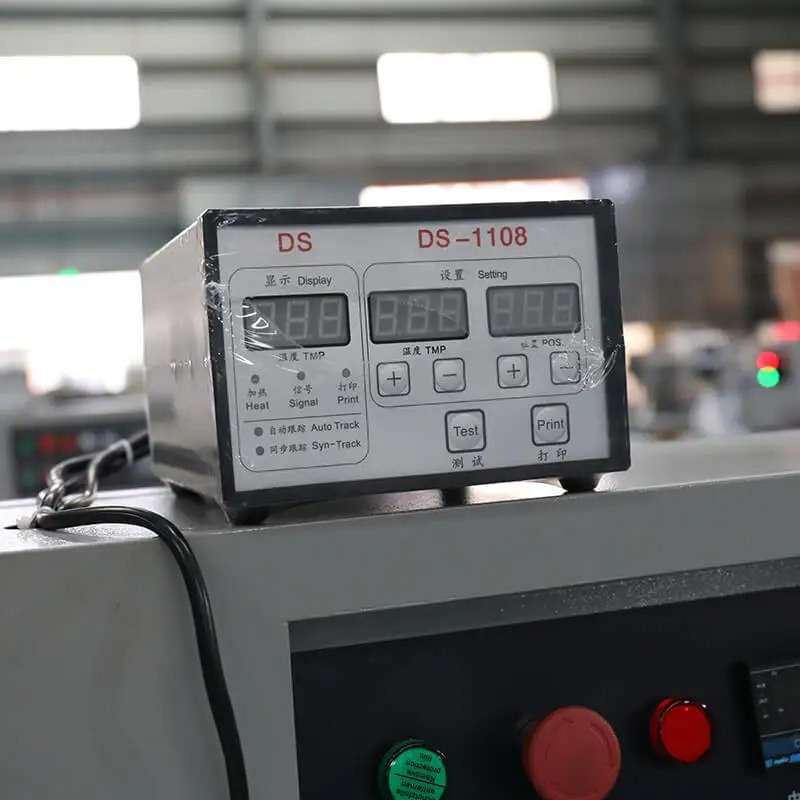

  • High sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, make the sealing and cutting position more accurate;
  • Temperature independent PID control, better suitable for various packaging materials;

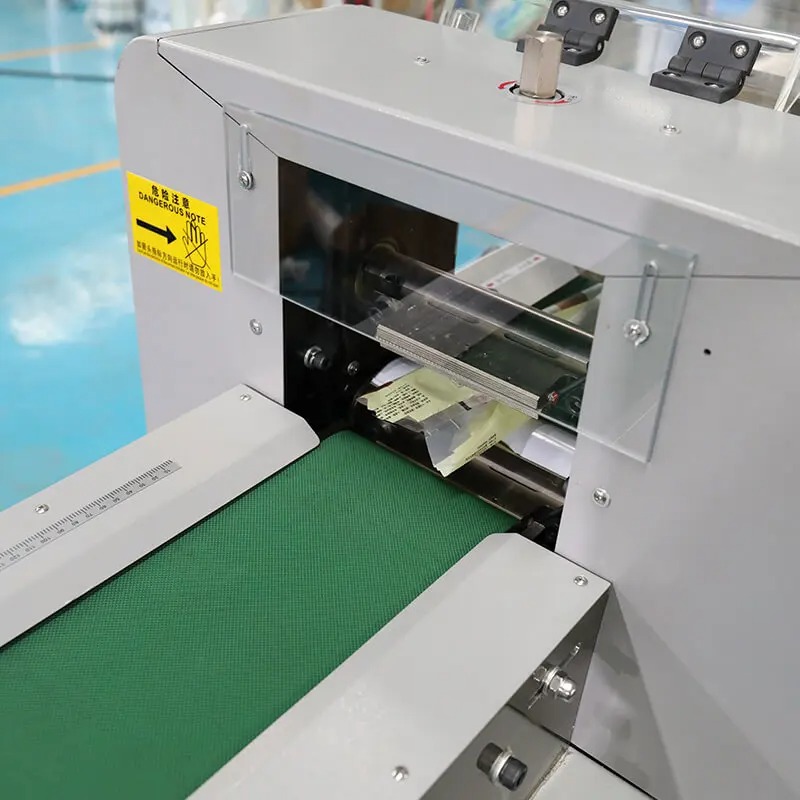

  • Positioning stop function, no stick to the cutter, no waste of film;
  • The transmission system is simple,the work is more reliable,the maintenance is more convenient;
  • All control is realized by software, which is convenient for function adjustment and technical upgrading.
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
Flow Wrap Packing Machine With Pulling Film From EndFlow Wrap Packing Machine With Pulling Film From End
TypeVK-250hVK-350hVK-450hVK-600h
Film widthMax 250mmVK-350Max 450mmVK-600
Bag length70-280mm70-300mm70-400mmVK-600
Bag width30-110mm50-160mm50-210mmVK-600
Product heightMax 40-60mmMax 40-60mmMax 75mmVK-600
Fim roll diameterMax 320mm
Packing speed40-230bag/min40-230bag/min40-180bag/minVK-600
Power220V 50/60Hz2.6kW2.8kW3.2kW3.4kW
Machine size（L×W×H）3877×670×1390mm3980×830×1390mm4020×888×1450mm4280×1050×1450mm
Machine weight450kg580kg650kg700kg
Optional deviceCoding machine, Gas-filling device, Cake falling device, Sorting machine
Packaging materialFor example single-layer heat sealing BOPP or composite film such as OPP composite PE, PET composite PEF
Bag typeBack-sealed package (hanging hole round hole/butterfly hole can be customized )
Horizontal sealing /Blade grainCutter edge serrated/flat edge plus V easy tear
Flow Wrap Packing Machine With Pulling Film From End ApplicationFlow Wrap Packing Machine With Pulling Film From End Application
Flow Wrap Packing Machine With Pulling Film From End ApplicationFlow Wrap Packing Machine With Pulling Film From End Application
Flow Wrap Packing Machine With Pulling Film From End ApplicationFlow Wrap Packing Machine With Pulling Film From End Application
