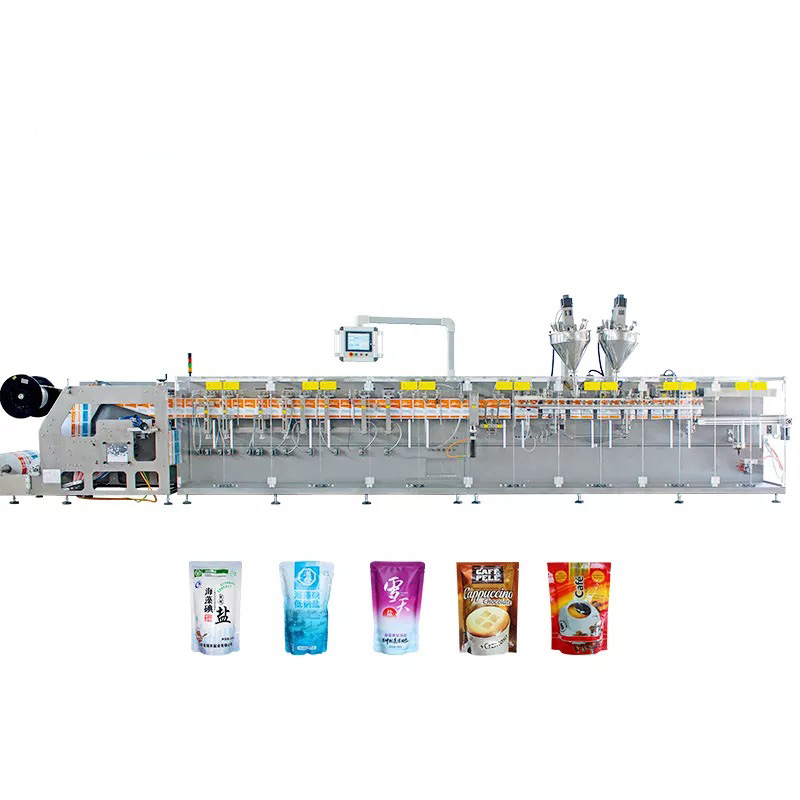

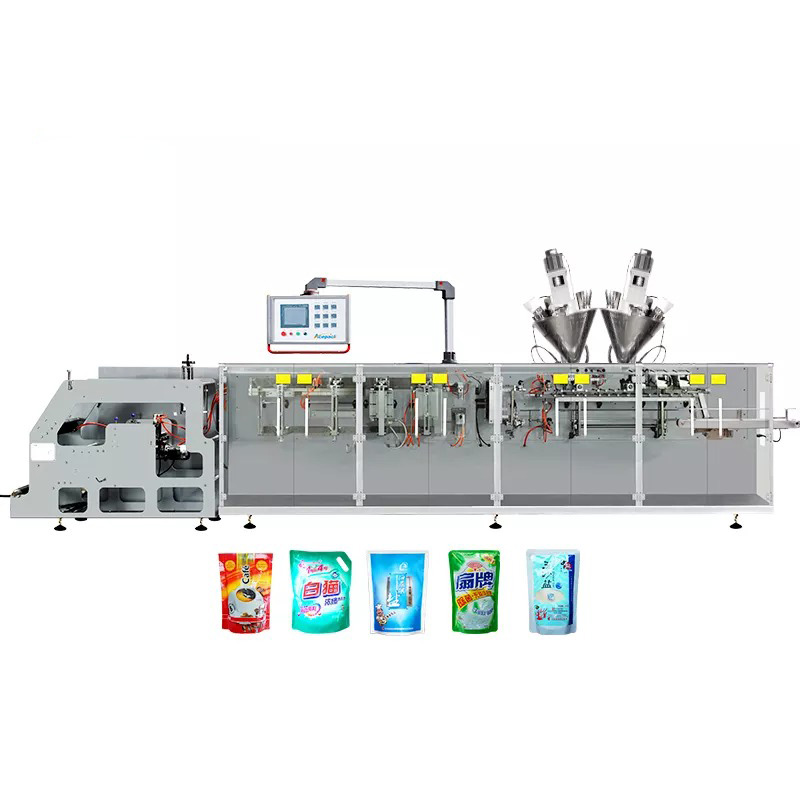

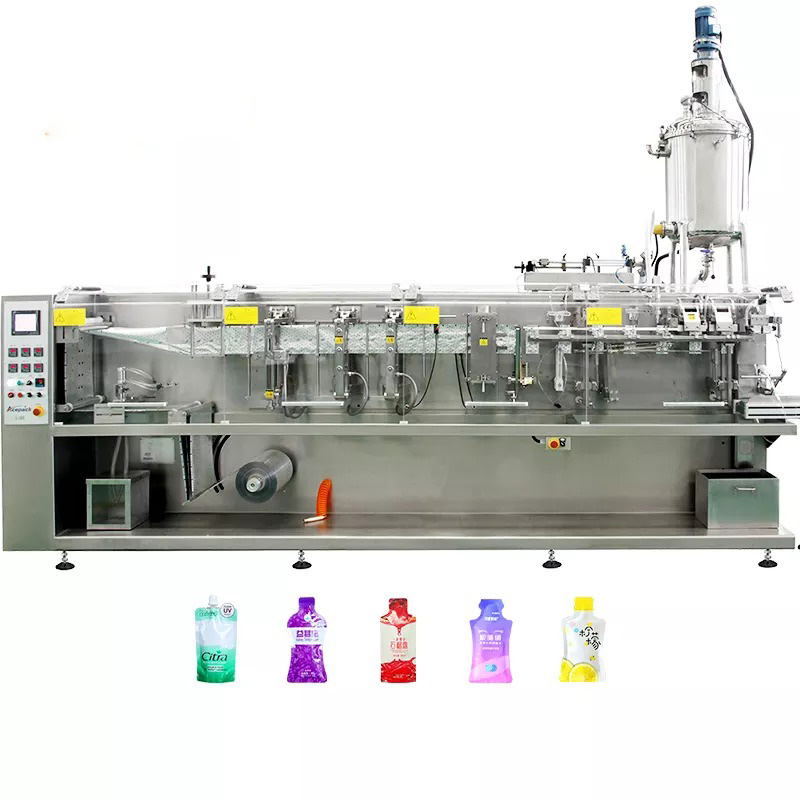

Automatic Zipper Doypack HFFS Packing Machine

Automatic Zipper Doypack HFFS Packing MachineAutomatic Zipper Doypack HFFS Packing Machine
Automatic Zipper Doypack HFFS Packing MachineAutomatic Zipper Doypack HFFS Packing Machine
Automatic Zipper Doypack HFFS Packing MachineAutomatic Zipper Doypack HFFS Packing Machine
Automatic Zipper Doypack HFFS Packing MachineAutomatic Zipper Doypack HFFS Packing Machine

This zipper doypack pouch packaging machine is specially designed for the packaging of stand-up pouches with zipper sealing. The equipment is flexible and multi-purpose, which can effectively solve the application of finished bags from small size to large size, and can be widely used in powder, granule and other material packaging. The packaging material of the zipper stand-up pouch packaging machine is composite material.

DetailsParameterVideoApplication
Automatic-Zipper-Doypack-HFFS-Packing-Machine-Process

（1） Zipper Mechannism（7） Bottom Seal（13）Vertical Cooling II（19）Duplex Pouch Opening（25）Top Seal II
（2） Film Unwind（8） Vertical I（14）Tear Notch（20）Air Flushing（26）Finished Product
（3） Bottom Hole Punching（9） Vertical II（15）Photocell（21）Filling I（27）Outlet
（4） Pouch Forming（10）Vertical III（16）Servo Advannce（22）Filling II
（5） Film Guide（11）Vertical IV（17）Cutting（23）Pouch Stretching
（6） Zipper Sealing（12）Vertical Cooling I（18）Pouch Catching（24）Top Seal I

Automatic-Zipper-Doypack-HFFS-Packing-Machine-Application

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

Automatic-Zipper-Doypack-HFFS-Packing-Machine-Bag-Type

ModelDS-140SZDS-180SZDS-240SZDS-280DSZ
Maximum Packing Volume300ml1200ml2000ml800ml
Max Pouch Size140mm*200mm180mm*260mm240mm*350mm140mm*260mm
Min Pouch Size60mm*90mm90mm*110mm100mm*120mm90mm*110mm
Packing Speed40-60ppm40-60ppm30-60ppm80-120ppm
Air Consumption200NL/min200NL/min300NL/min700NL/min
Input Power8kw8.3kw10kw12kw
Working Power SupplyAC 380V 50HzAC 380V 50HzAC 380V 50HzAC 380V 50Hz
Equipment Weight1800kg2300kg2800kg4100kg
L*W*H4780*970*1400mm6970*1100*1400mm7500*1250*1400mm7800*1100*1400mm
