Automatic Fruit Flow Packing Machine

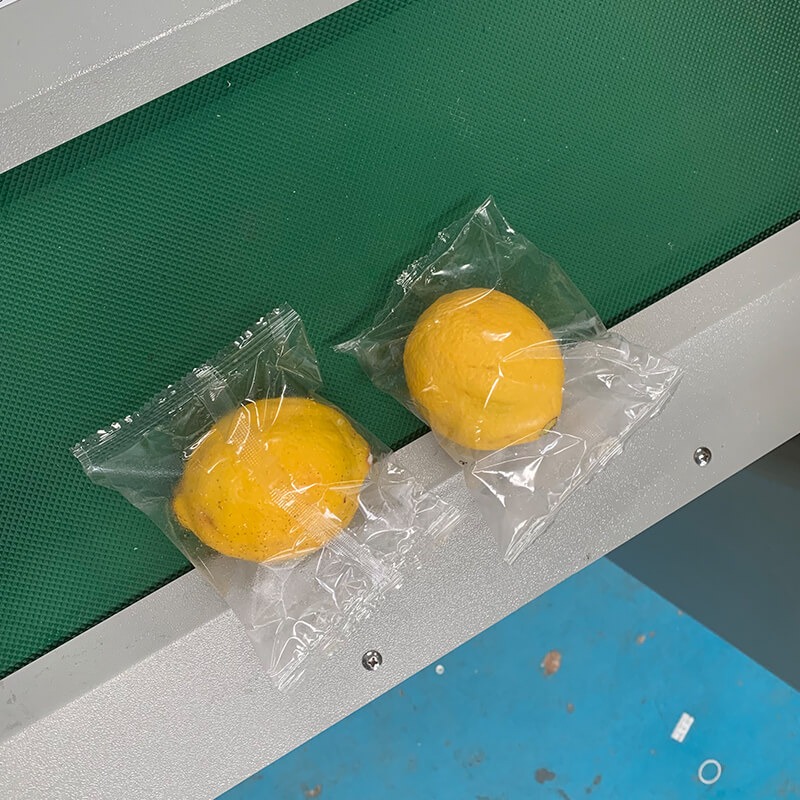

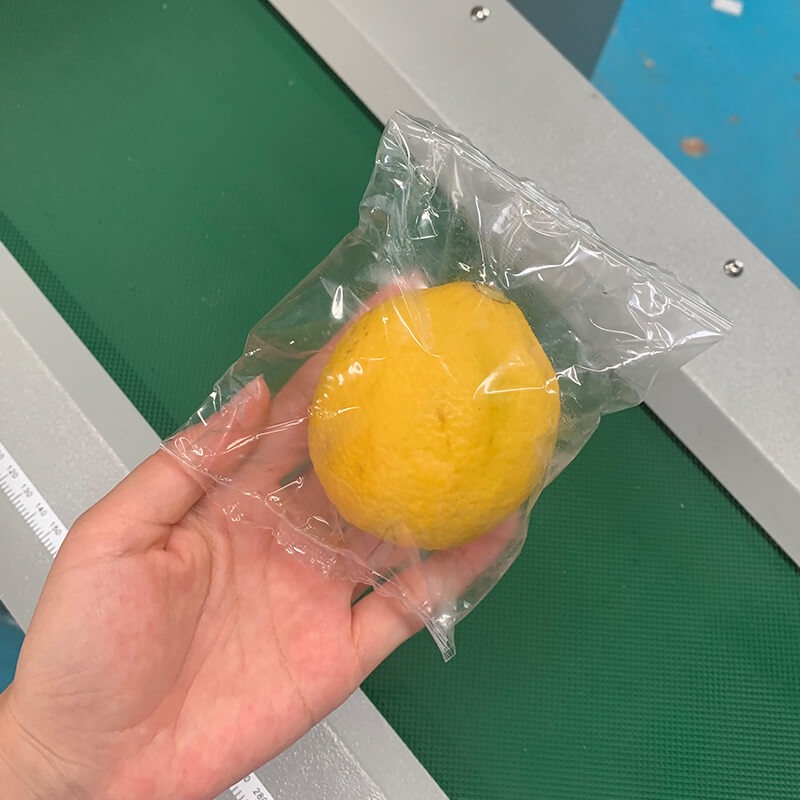

Mainly suitable for: lemon, passion fruit, navel orange, tangan, sugar orange, apple, pomegranate, pomelo and so on.

DetailsParameterVideoApplication

Compact structure, stable performance, simple operation, stable operation;
Bag length is set and cut immediately, no need to adjust the empty walk, one step in place, save time and film;

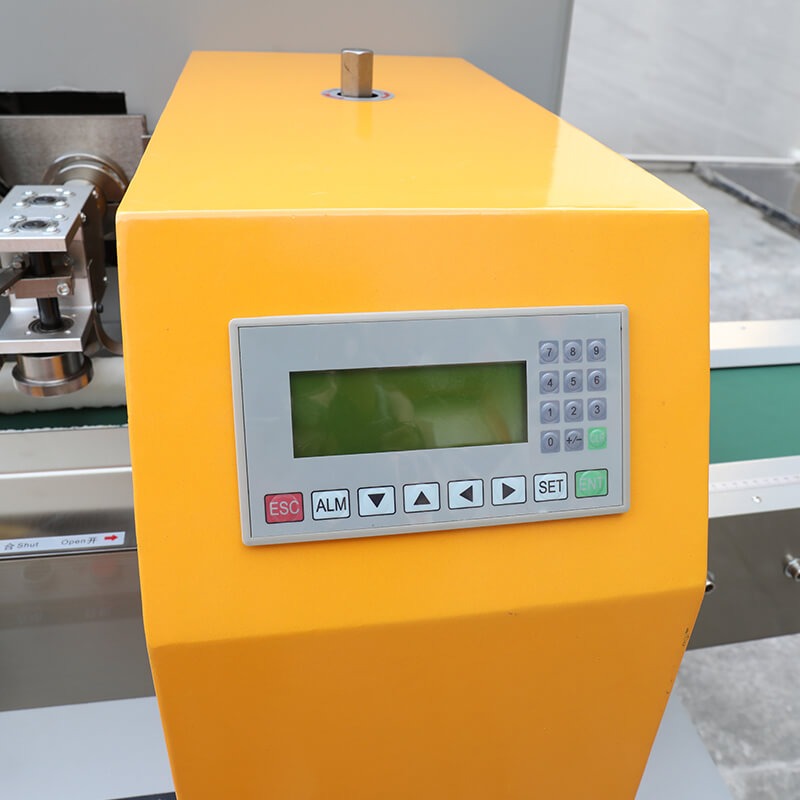

Adopt imported electric appliances, touch type man-machine interface, convenient parameter setting and quick fault self-diagnosis function, fault display at a glance;
High sensitivity photoelectric color standard tracking, making the sealing and cutting position more accurate;
Temperature independent PID control, better for all kinds of material envelop;
Positioning stop function, no stick knife, no film;
The rotating system is simple, the work is more reliable and the maintenance is more convenient.

Model	VK-350X
Film width	Max.350mm
Bag length	80-280mm
Bag width	40-160mm
Product height	Max.40-90mm
Film diameter	Max.320mm
Packing speed	30-180bag/min
Power	3.5kW
Machine size	4830×930×1400mm
Optional	Date printer, gas-filling device, punching clevice
Packaging materials	Single-layer heat sealing BOPP or OPP/PE, PET/PEF
Bag shape	Back seal packaging
Horizontal seal/Incision texture	Reticulated sealing/stripe sealing/knife-edge serrated mouth/flat mouth plus V easy tear mouth cm
